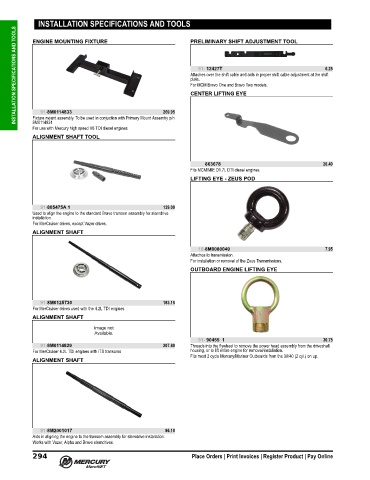

Page 307 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

INSTALLATION SPECIFICATIONS AND TOOLS PRELIMINARY SHIFT ADJUSTMENT TOOL
INSTALLATION SPECIFICATIONS AND TOOLS Attaches over the shift cable and aids in proper shift cable adjustment at the shift

ENGINE MOUNTING FIXTURE

91- 12427T
6.25
plate.
For MCM Bravo One and Bravo Two models.
CENTER LIFTING EYE

91-8M0114833
Fixture mount assembly. To be used in conjuction with Primary Mount Assemby p/n
8M0114831
For use with Mercury high speed V8 TDI diesel engines 269.95
ALIGNMENT SHAFT TOOL

863678 20.40
Fits MCM/MIE D1.7L DTI diesel engines.
LIFTING EYE - ZEUS POD

91-805475A 1 139.00
Used to align the engine to the standard Bravo transom assembly for sterndrive
installation.
For MerCruiser drives, except Vazer drives.
ALIGNMENT SHAFT

10-8M0080049 7.95
Attaches to transmission.
For installation or removal of the Zeus Transmissions.
OUTBOARD ENGINE LIFTING EYE

91-8M0125730 183.15
For MerCruiser drives used with the 4.2L TDI engines
ALIGNMENT SHAFT

91- 90455 1 30.75
91-8M0114829 207.80 Threads into the flywheel to remove the power head assembly from the driveshaft
For MerCruiser 4.2L TDI engines with ITS transoms housing, or to lift entire engine for removal/installation.
Fits most 2 cycle Mercury/Mariner Outboards from the 30/40 (2 cyl.) on up.
ALIGNMENT SHAFT

91-8M2001017 86.10
Aids in aligning the engine to the transom assembly for sterndrive installation.
Works with Vazer, Alpha and Bravo sterndrives.
294 Place Orders | Print Invoices | Register Product | Pay Online
