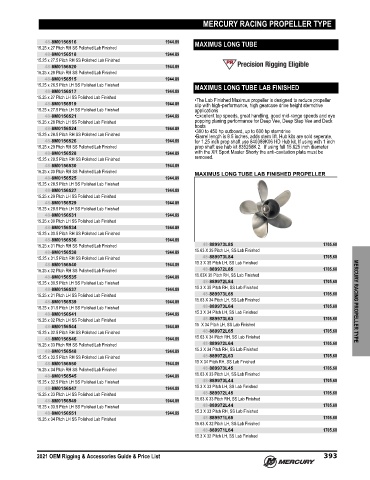

Page 406 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY RACING PROPELLER TYPE

48-8M0156516 1944.89 MAXIMUS LONG TUBE
15.25 x 27 Pitch RH SS Polished Lab Finished
48-8M0156518 1944.89
15.25 x 27.5 Pitch RH SS Polished Lab Finished
48-8M0156520 1944.89
15.25 x 28 Pitch RH SS Polished Lab Finished
48-8M0156515 1944.89
15.25 x 26.5 Pitch LH SS Polished Lab Finished MAXIMUS LONG TUBE LAB FINISHED
48-8M0156517 1944.89
15.25 x 27 Pitch LH SS Polished Lab Finished •The Lab Finished Maximus propeller is designed to reduce propeller
48-8M0156519 1944.89 slip with high‑performance, high gearcase drive height sterndrive
15.25 x 27.5 Pitch LH SS Polished Lab Finished applications
48-8M0156521 1944.89 •Excellent top speeds, great handling, good mid‑range speeds and eye
15.25 x 28 Pitch LH SS Polished Lab Finished popping planing performance for Deep Vee, Deep Step Vee and Deck
48-8M0156524 1944.89 boats
•300 to 450 hp outboard, up to 600 hp sterndrive
15.25 x 28.5 Pitch RH SS Polished Lab Finished •Barrel length is 8.5 inches, adds stern lift. Hub kits are sold seperate,
48-8M0156526 1944.89 for 1.25 inch prop shaft use 840389K06 HD Hub kit. If using with 1 inch
15.25 x 29 Pitch RH SS Polished Lab Finished prop shaft use hub kit 835258K 2. If using full 15.625 inch diameter
48-8M0156528 1944.89 with the XR Sport Master Shorty the anti‑cavitation plate must be
15.25 x 29.5 Pitch RH SS Polished Lab Finished removed.
48-8M0156530 1944.89
15.25 x 30 Pitch RH SS Polished Lab Finished MAXIMUS LONG TUBE LAB FINISHED PROPELLER
48-8M0156525 1944.89
15.25 x 28.5 Pitch LH SS Polished Lab Finished
48-8M0156527 1944.89
15.25 x 29 Pitch LH SS Polished Lab Finished
48-8M0156529 1944.89
15.25 x 29.5 Pitch LH SS Polished Lab Finished
48-8M0156531 1944.89
15.25 x 30 Pitch LH SS Polished Lab Finished
48-8M0156534 1944.89
15.25 x 30.5 Pitch RH SS Polished Lab Finished
48-8M0156536 1944.89
15.25 x 31 Pitch RH SS Polished Lab Finished 48-889973L85 1705.60
48-8M0156538 1944.89 15.63 X 35 Pitch LH, SS Lab Finished
15.25 x 31.5 Pitch RH SS Polished Lab Finished 48-889973L84 1705.60
48-8M0156540 1944.89 15.3 X 35 Pitch LH, SS Lab Finished
15.25 x 32 Pitch RH SS Polished Lab Finished 48-889972L85 1705.60
48-8M0156535 1944.89 15.63X 35 Pitch RH, SS Lab Finished
15.25 x 30.5 Pitch LH SS Polished Lab Finished 48-889972L84 1705.60
48-8M0156537 1944.89 15.3 X 35 Pitch RH, SS Lab Finished
15.25 x 31 Pitch LH SS Polished Lab Finished 48-889973L65 1705.60
48-8M0156539 1944.89 15.63 X 34 Pitch LH, SS Lab Finished MERCURY RACING PROPELLER TYPE
15.25 x 31.5 Pitch LH SS Polished Lab Finished 48-889973L64 1705.60
48-8M0156541 1944.89 15.3 X 34 Pitch LH, SS Lab Finished
15.25 x 32 Pitch LH SS Polished Lab Finished 48-889973L63 1705.60
48-8M0156544 1944.89 15 X 34 Pitch LH, SS Lab Finished
15.25 x 32.5 Pitch RH SS Polished Lab Finished 48-889972L65 1705.60
48-8M0156546 1944.89 15.63 X 34 Pitch RH, SS Lab Finished
15.25 x 33 Pitch RH SS Polished Lab Finished 48-889972L64 1705.60
48-8M0156548 1944.89 15.3 X 34 Pitch RH, SS Lab Finished
15.25 x 33.5 Pitch RH SS Polished Lab Finished 48-889972L63 1705.60
48-8M0156550 1944.89 15 X 34 Pitch RH, SS Lab Finished
15.25 x 34 Pitch RH SS Polished Lab Finished 48-889973L45 1705.60
48-8M0156545 1944.89 15.63 X 33 Pitch LH, SS Lab Finished
15.25 x 32.5 Pitch LH SS Polished Lab Finished 48-889973L44 1705.60
48-8M0156547 1944.89 15.3 X 33 Pitch LH, SS Lab Finished
15.25 x 33 Pitch LH SS Polished Lab Finished 48-889972L45 1705.60
48-8M0156549 1944.89 15.63 X 33 Pitch RH, SS Lab Finished
15.25 x 33.5 Pitch LH SS Polished Lab Finished 48-889972L44 1705.60
48-8M0156551 1944.89 15.3 X 33 Pitch RH, SS Lab Finished
15.25 x 34 Pitch LH SS Polished Lab Finished 48-889971L65 1705.60
15.63 X 32 Pitch LH, SS Lab Finished
48-889971L64 1705.60
15.3 X 32 Pitch LH, SS Lab Finished

2021 OEM Rigging & Accessories Guide & Price List 393
