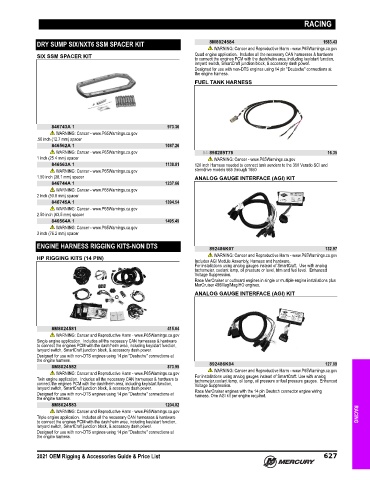

Page 640 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

RACING

DRY SUMP SIX/NXT6 SSM SPACER KIT 8M8024584 1583.43
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SIX SSM SPACER KIT Quad engine application. Includes all the necessary CAN harnesses & hardware
to connect the engines PCM with the dash/helm area, including key/start function,
lanyard switch, SmartCraft junction block, & accessory dash power.
Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at
the engine harness.
FUEL TANK HARNESS

846743A 1 973.36
WARNING: Cancer - www.P65Warnings.ca.gov
.50 inch (12.7 mm) spacer
846562A 1 1087.26
WARNING: Cancer - www.P65Warnings.ca.gov 84-898289T75 16.35
1 inch (25.4 mm) spacer WARNING: Cancer - www.P65Warnings.ca.gov
846563A 1 1138.81 120 inch Harness needed to connect tank senders to the 350 Verado SCI and
WARNING: Cancer - www.P65Warnings.ca.gov sterndrive models 565 through 1650
1.50 inch (38.1 mm) spacer ANALOG GAUGE INTERFACE (AGI) KIT
846744A 1 1237.66
WARNING: Cancer - www.P65Warnings.ca.gov
2 inch (50.8 mm) spacer
846745A 1 1394.54
WARNING: Cancer - www.P65Warnings.ca.gov
2.50 inch (63.5 mm) spacer
846564A 1 1495.49
WARNING: Cancer - www.P65Warnings.ca.gov
3 inch (76.2 mm) spacer
ENGINE HARNESS RIGGING KITS-NON DTS 892486K07 132.97
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
HP RIGGING KITS (14 PIN)
Includes AGI Module Assembly, Harness and hardware.
For installations using analog gauges instead of SmartCraft. Use with analog
tachometer, coolant temp, oil pressure or level, trim and fuel level. Enhanced
Voltage Suppression.
Race MerCruiser or outboard engines in single or multiple engine installations plus
MerCruiser 496Mag/Mag HO engines.
ANALOG GAUGE INTERFACE (AGI) KIT

8M8024581 415.64
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Single engine application. Includes all the necessary CAN harnesses & hardware
to connect the engines PCM with the dash/helm area, including key/start function,
lanyard switch, SmartCraft junction block, & accessory dash power.
Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at
the engine harness.
8M8024582 873.95 892486K04 127.09
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Twin engine application. Includes all the necessary CAN harnesses & hardware to For installations using analog gauges instead of SmartCraft. Use with analog
tachometer,coolant temp, oil temp, oil pressure or fuel pressure gauges. Enhanced
connect the engines PCM with the dash/helm area, including key/start function, Voltage Suppression.
lanyard switch, SmartCraft junction block, & accessory dash power.
Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at Race MerCruiser engines with the 14 pin Deutsch connector engine wiring
harness. One AGI kit per engine required.
the engine harness.
8M8024583 1204.02
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Triple engine application. Includes all the necessary CAN harnesses & hardware RACING
to connect the engines PCM with the dash/helm area, including key/start function,
lanyard switch, SmartCraft junction block, & accessory dash power.
Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at
the engine harness.
2021 OEM Rigging & Accessories Guide & Price List 627
