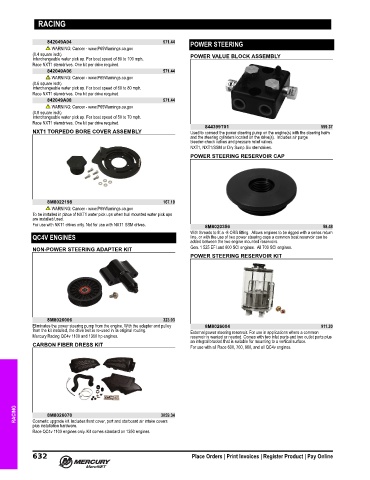

Page 645 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

RACING

842049A04 571.44 POWER STEERING
WARNING: Cancer - www.P65Warnings.ca.gov
(0.4 square inch) POWER VALUE BLOCK ASSEMBLY
Interchangeable water pick up. For boat speed of 80 to 100 mph.
Race NXT1 sterndrives. One kit per drive required.
842049A06 571.44
WARNING: Cancer - www.P65Warnings.ca.gov
(0.6 square inch)
Interchangeable water pick up. For boat speed of 60 to 80 mph.
Race NXT1 sterndrives. One kit per drive required.
842049A08 571.44
WARNING: Cancer - www.P65Warnings.ca.gov
(0.8 square inch)
Interchangeable water pick up. For boat speed of 50 to 70 mph.
Race NXT1 sterndrives. One kit per drive required.
844399T01 559.37
NXT1 TORPEDO BORE COVER ASSEMBLY Used to connect the power steering pump on the engine(s) with the steering helm
and the steering cylinders located on the drive(s). Includes air purge
bleeder‑check valves and pressure relief valves.
NXT1, NXT1/SSM or Dry Sump Six sterndrives.
POWER STEERING RESERVOIR CAP

8M8022198 167.19
WARNING: Cancer - www.P65Warnings.ca.gov
To be installed in place of NXT1 water pick ups when hull mounted water pick ups
are installed/used.
For use with NXT1 drives only. Not for use with NXT1 SSM drives. 8M8020356 58.48
With threads to fit a ‑8 ORB fitting. Allows engines to be rigged with a series return
QC4V ENGINES line, or with the use of two power steering caps a common boat reservoir can be
added between the two engine mounted reservoirs.
NON-POWER STEERING ADAPTER KIT Gen. 1 525 EFI and 600 SCI engines. All 700 SCI engines.
POWER STEERING RESERVOIR KIT

8M8026006 323.93
Eliminates the power steering pump from the engine. With the adapter and pulley 8M8026004 911.20
from the kit installed, the drive belt is re‑used in its original routing. External power steering reservoir. For use in applications where a common
Mercury Racing QC4v 1100 and 1350 hp engines. reservoir is wanted or needed. Comes with two inlet ports and two outlet ports plus
an integral bracket that is suitable for mounting to a vertical surface.
CARBON FIBER DRESS KIT For use with all Race 600, 700, 860, and all QC4v engines.

RACING 8M8026070 3059.34
Cosmetic upgrade kit. Includes front cover, port and starboard air intake covers
plus installation hardware.
Race QC4v 1100 engines only. Kit comes standard on 1350 engines.
