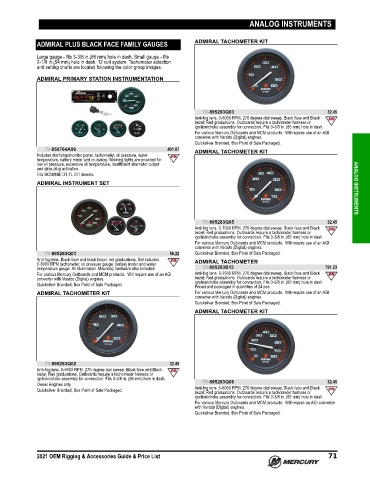

Page 84 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ANALOG INSTRUMENTS

ADMIRAL PLUS BLACK FACE FAMILY GAUGES ADMIRAL TACHOMETER KIT

Large gauge ‑ fits 3‑3/8 in.(86 mm) hole in dash. Small gauge ‑ fits
2‑1/8 in.(54 mm) hole in dash. 12 volt system. Tachometer selection
and setting charts are located following the color group images.

ADMIRAL PRIMARY STATION INSTRUMENTATION

79-895283Q03 32.45
Anti‑fog lens. 0‑6000 RPM. 270 degree dial sweep. Black face and Black
bezel; Red graduations. Outboards require a tachometer harness or
ignition/choke assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash.
For various Mercury Outboards and MCM products. Will require use of an AGI
converter with Verado (Digital) engines.
Quicksilver Branded, Box Point of Sale Packaged.
79-850764A06 401.07 ADMIRAL TACHOMETER KIT
Includes start/stop/monitor panel, tachometer, oil pressure, water
temperature, battery meter and cruiselog. Warning lights are provided for
low oil pressure, excessive oil temperature, insufficient alternator output
and glow plug activation.
Fits MCM/MIE D1.7L DTI diesels.
ADMIRAL INSTRUMENT SET ANALOG INSTRUMENTS

79-895283Q05 32.45
Anti‑fog lens. 0‑7000 RPM. 270 degree dial sweep. Black face and Black
bezel; Red graduations. Outboards require a tachometer harness or
ignition/choke assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash.
For various Mercury Outboards and MCM products. Will require use of an AGI
converter with Verado (Digital) engines.
79-895283Q01 58.22 Quicksilver Branded, Box Point of Sale Packaged.
Anti‑fog lens. Black face and black bezel; red graduations. Set includes ADMIRAL TACHOMETER
0‑6000 RPM tachometer, oil pressure gauge, battery meter and water
temperature gauge. All illuminated. Mounting hardware also included. 79-895283B13 791.23
For various Mercury Outboards and MCM products. Will require use of an AGI Anti‑fog lens. 0‑7000 RPM. 270 degree dial sweep. Black face and Black
converter with Verado (Digital) engines. bezel; Red graduations. Outboards require a tachometer harness or
Quicksilver Branded, Box Point of Sale Packaged. ignition/choke assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash.
Priced and packaged in quantities of 24 pcs.
ADMIRAL TACHOMETER KIT For various Mercury Outboards and MCM products. Will require use of an AGI
converter with Verado (Digital) engines
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL TACHOMETER KIT

79-895283Q02 32.45
Anti‑fog lens. 0‑5000 RPM. 270 degree dial sweep. Black face and Black
bezel; Red graduations. Outboards require a tachometer harness or
ignition/choke assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash. 32.45
Diesel Engines only 79-895283Q06
Quicksilver Branded, Box Point of Sale Packaged. Anti‑fog lens. 0‑8000 RPM. 270 degree dial sweep. Black face and Black
bezel; Red graduations. Outboards require a tachometer harness or
ignition/choke assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash.
For various Mercury Outboards and MCM products. Will require an AGI converter
with Veradp (Digital) engines.
Quicksilver Branded, Box Point of Sale Packaged.
