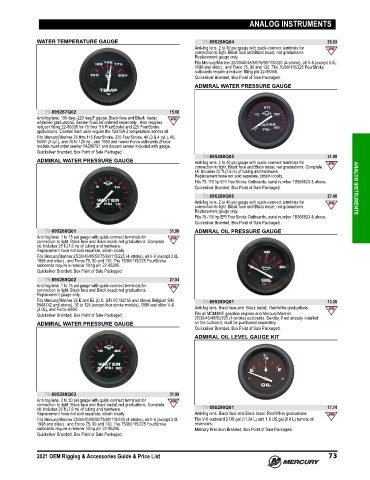

Page 86 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ANALOG INSTRUMENTS

WATER TEMPERATURE GAUGE 79-895288Q04 26.83
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations.
Replacement gauge only.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

79-895287Q02 15.66
Anti‑fog lens. 100 deg.‑220 deg.F gauge. Black face and Black bezel;
white/red graduations. Sender must be ordered seperately. Also requires
reducer fitting 22‑86306 for 75 thru 115 FourStroke and 225 FourStroke
applications. Coastal flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791 and discard sender included with gauge.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q05 31.99
ADMIRAL WATER PRESSURE GAUGE Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations. Complete
kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged. ANALOG INSTRUMENTS
79-895288Q06 27.40
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations.
Replacement gauge only.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q01 31.99 ADMIRAL OIL PRESSURE GAUGE
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations. Complete
kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q02 27.54
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations.
Replacement gauge only.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N 79-895289Q01 13.26
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50. Anti‑fog lens. Black face and Black bezel; Red/white graduations.
Quicksilver Branded, Box Point of Sale Packaged. Fits all MCM/MIE gasoline engines and Mercury/Mariner
25/30/40/45/50/225 (4‑stroke) outboards. Sender, if not already installed
ADMIRAL WATER PRESSURE GAUGE on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL OIL LEVEL GAUGE KIT

79-895288Q03 31.99
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations. Complete
kit. Includes 25 ft.(7.6 m) of tubing and hardware. 79-895290Q01 17.74
Replacement hose not sold separate, obtain locally. Anti‑fog lens. Black face and Black bezel; Red/White graduations.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L Fits V‑6 outboard 3 US gal.(11.34 L) and 1.8 US gal.(6.8 L) remote oil
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke reservoirs.
outboards require a reducer fitting p/n 22‑86306. Mercury Precision Branded, Box Point of Sale Packaged.
Quicksilver Branded, Box Point of Sale Packaged.

2021 OEM Rigging & Accessories Guide & Price List 73
