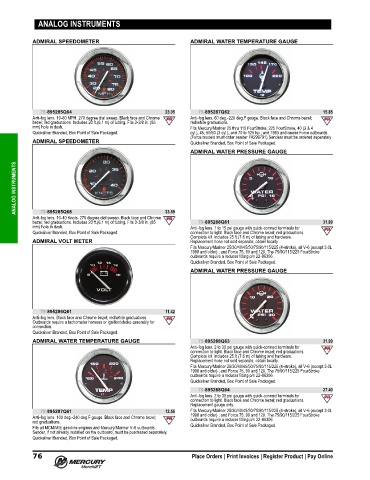

Page 89 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ANALOG INSTRUMENTS

ADMIRAL SPEEDOMETER ADMIRAL WATER TEMPERATURE GAUGE

79-895285Q64 23.05 79-895287Q62 15.85
Anti‑fog lens. 10‑80 MPH. 270 degree dial sweep. Black face and Chrome Anti‑fog lens. 60 deg.‑220 deg.F gauge. Black face and Chrome bezel;
bezel; red graduations. Includes 20 ft.(6.1 m) of tubing. Fits 3‑3/8 in. (85 red/white graduations.
mm) hole in dash. Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4
Quicksilver Branded, Box Point of Sale Packaged. cyl.), 45, 50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards
(Force models must order sender FA299791) Senders must be ordered seperately
ADMIRAL SPEEDOMETER Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE
ANALOG INSTRUMENTS

79-895285Q68
Anti‑fog lens. 10‑40 Knots. 270 degree dial sweep. Black face and Chrome 33.89
bezel; red graduations. Includes 20 ft.(6.1 m) of tubing. Fits 3‑3/8 in. (85 79-895288Q61 31.99
mm) hole in dash. Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
Quicksilver Branded, Box Point of Sale Packaged. connection to light. Black face and Chrome bezel; red graduations.
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware.
ADMIRAL VOLT METER Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

79-895286Q61 11.42
Anti‑fog lens. Black face and Chrome bezel; red/white graduations.
Outboards require a tachometer harness or ignition/choke assembly for
connection.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER TEMPERATURE GAUGE 79-895288Q63 31.99
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Chrome bezel; red graduations.
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q64 27.40
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Chrome bezel; red graduations.
Replacement gauge only.
79-895287Q61 12.55 Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Chrome bezel; 1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
red graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner V‑6 outboards. Quicksilver Branded, Box Point of Sale Packaged.
Sender, if not already installed on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
76 Place Orders | Print Invoices | Register Product | Pay Online
