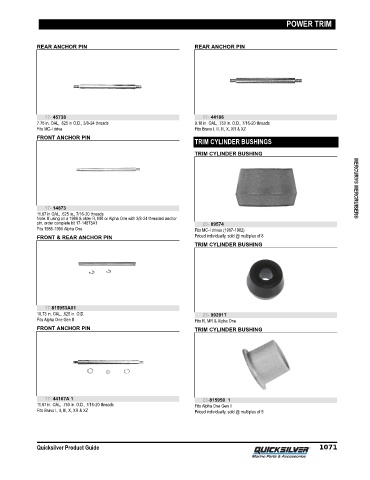

Page 1080 - Quicksilver Product Guide (2020) - 8M0163242

POWER TRIM

REAR ANCHOR PIN REAR ANCHOR PIN

17- 45738 17- 44166
7.75 in. OAL, .625 in O.D., 3/8‑24 threads 9.18 in. OAL, .750 in. O.D., 7/16‑20 threads
Fits MC‑I drive Fits Bravo I, II, III, X, XR & XZ
FRONT ANCHOR PIN
TRIM CYLINDER BUSHINGS
TRIM CYLINDER BUSHING

17- 14873 MERCURY® MERCRUISER®
11.87 in OAL, .625 in., 7/16‑20 threads
Note: If using on a 1986 & older R, MR or Alpha One with 3/8‑24 threaded anchor
pin, order complete kit 17‑14873A1 23- 89574
Fits 1986‑1990 Alpha One Fits MC‑I drives (1967‑1982)
FRONT & REAR ANCHOR PIN Priced individually, sold @ multiples of 8
TRIM CYLINDER BUSHING

17-815953A01
10.73 in. OAL, .625 in. O.D. 23- 99291T
Fits Alpha One Gen II Fits R, MR & Alpha One
FRONT ANCHOR PIN TRIM CYLINDER BUSHING

17- 44167A 1 23-815950 1
11.87 in. OAL, .750 in. O.D., 7/16‑20 threads Fits Alpha One Gen II
Fits Bravo I, II, III, X, XR & XZ Priced individually, sold @ multiples of 5

Quicksilver Product Guide 1071
