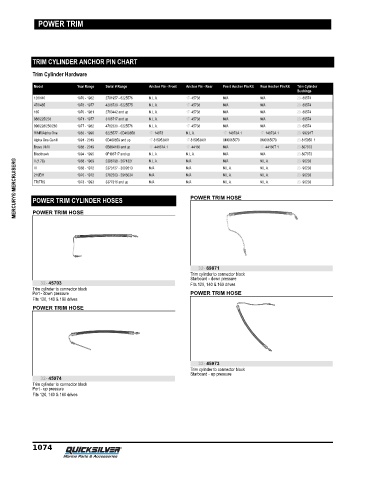

Page 1083 - Quicksilver Product Guide (2020) - 8M0163242

POWER TRIM

TRIM CYLINDER ANCHOR PIN CHART

Trim Cylinder Hardware
Model Year Range Serial # Range Anchor Pin - Front Anchor Pin - Rear Front Anchor Pin Kit Rear Anchor Pin Kit Trim Cylinder
Bushings
120/140 1970 - 1982 2791957 - 6225576 N.L.A. 17- 45738 N/A N/A 23- 89574
470/485 1978 - 1977 4208730 - 6225575 N.L.A. 17- 45738 N/A N/A 23- 89574
165 1970 - 1981 2763442 and up N.L.A. 17- 45738 N/A N/A 23- 89574
888/225/233 1971 - 1977 3106717 and up N.L.A. 17- 45738 N/A N/A 23- 89574
898/228/250/260 1977 - 1982 4782330 - 6225576 N.L.A. 17- 45738 N/A N/A 23- 89574
R/MR/Alpha One 1983 - 1990 6225577 - 0D469858 17- 14873 N.L.A. 17- 14873A 1 17- 14872A 1 23- 99291T
Alpha One Gen II 1991 - 2019 0D469859 and up 17-815953A01 17-815953A01 8M0065070 8M0065070 23-815950 1
Bravo I/II/III 1988 - 2019 0B664190 and up 17- 44167A 1 17- 44166 N/A 17- 44166T 1 23-807073
Blackhawk 1994 - 1995 0F186717 and up N.L.A. N.L.A. N/A N/A 23-807073
MERCURY® MERCRUISER® POWER TRIM CYLINDER HOSES N/A N/A POWER TRIM HOSE N.L.A. 23- 90203
N/A
N.L.A.
23- 90203
N/A
1968 - 1969
2398798 - 2671321
N.L.A.
II (1.78)
N/A
2373127 - 3002613
1968 - 1972
N/A
23- 90203
N.L.A.
N.L.A.
III
N.L.A.
215E/H
2782203 - 2915034
1970 - 1972
N/A
TR/TRS
N/A
N.L.A.
1973 - 1993
23- 90203
N.L.A.
3377316 and up
POWER TRIM HOSE
32- 69871
Trim cylinder to connector block
Starboard ‑ down pressure
32- 45703 Fits 120, 140 & 160 drives
Trim cylinder to connector block
Port ‑ down pressure POWER TRIM HOSE
Fits 120, 140 & 160 drives
POWER TRIM HOSE

32- 45973
Trim cylinder to connector block
Starboard ‑ up pressure
32- 45974
Trim cylinder to connector block
Port ‑ up pressure
Fits 120, 140 & 160 drives
