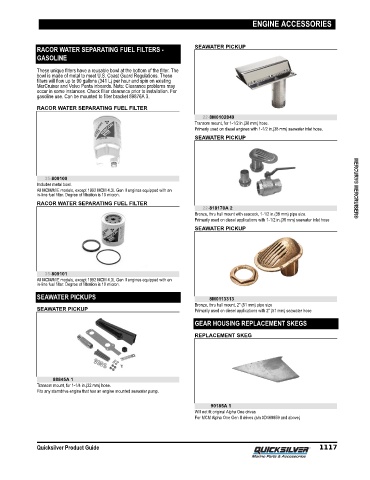

Page 1126 - Quicksilver Product Guide (2020) - 8M0163242

ENGINE ACCESSORIES

RACOR WATER SEPARATING FUEL FILTERS - SEAWATER PICKUP
GASOLINE

These unique filters have a reusable bowl at the bottom of the filter. The
bowl is made of metal to meet U.S. Coast Guard Regulations. These
filters will flow up to 90 gallons (341 L) per hour and spin on existing
MerCruiser and Volvo Penta inboards. Note: Clearance problems may
occur in some instances. Check filter clearance prior to installation. For
gasoline use. Can be mounted to filter bracket 89876A 3.

RACOR WATER SEPARATING FUEL FILTER
22-8M0102849
Transom mount, for 1‑1/2 in.(38 mm) hose.
Primarly used on diesel engines with 1‑1/2 in.(38 mm) seawater inlet hose.
SEAWATER PICKUP

35-809100
Includes metal bowl.
All MCM/MIE models, except 1992 MCM 4.3L Gen II engines equipped with an MERCURY® MERCRUISER®
in‑line fuel filter. Degree of filtration is 10 micron.
RACOR WATER SEPARATING FUEL FILTER
22-818170A 2
Bronze, thru hull mount with seacock, 1‑1/2 in.(38 mm) pipe size.
Primarily used on diesel applications with 1‑1/2 in.(38 mm) seawater inlet hose
SEAWATER PICKUP

35-809101
All MCM/MIE models, except 1992 MCM 4.3L Gen II engines equipped with an
in‑line fuel filter. Degree of filtration is 10 micron.
SEAWATER PICKUPS 8M0113313
Bronze, thru hull mount, 2" (51 mm) pipe size
SEAWATER PICKUP Primarily used on diesel applications with 2" (51 mm) seawater hose

GEAR HOUSING REPLACEMENT SKEGS
REPLACEMENT SKEG

88845A 1
Transom mount, for 1‑1/4 in.(32 mm) hose.
Fits any sterndrive engine that has an engine mounted seawater pump.

90185A 1
Will not fit original Alpha One drives
For MCM Alpha One Gen II drives (s/n 0D469859 and above)

Quicksilver Product Guide 1117
