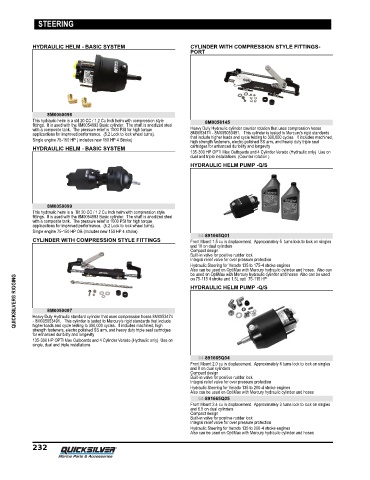

Page 241 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

HYDRAULIC HELM - BASIC SYSTEM CYLINDER WITH COMPRESSION STYLE FITTINGS-
PORT

8M0050098
This hydraulic helm is a std 20 CC / 1.2 Cu Inch helm with compression style 8M0056145
fittings. It is used with the 8M0054993 Basic cylinder. The shaft is anodized steel
with a composite tank. The pressure relief is 1000 PSI for high torque Heavy Duty Hydraulic cylinder counter rotation that uses compression hoses
applicactions for improved performance. (5.2 Lock to lock wheel turns). 8M0053474 ‑ 8M005053491. This cylinder is tested to Mercury's rigid standards
Single engine 75‑150 HP ( includes new 150 HP 4 Stroke) that include higher loads and cycle testing to 300,000 cycles. It includes machined,
high strength fasteners, electro polished SS arm, and heavy duty triple seal
HYDRAULIC HELM - BASIC SYSTEM cartridges for enhanced duribility and longevity
135‑300 HP OPTI Max Outboards and 4 Cylinder Verado (Hydraulic only) Use on
dual and triple installations (Counter rotation )
HYDRAULIC HELM PUMP -Q/S

8M0050099
This hydraulic helm is a Tilt 20 CC / 1.2 Cu Inch helm with compression style
fittings. It is used with the 8M0054993 Basic cylinder. The shaft is anodized steel
with a composite tank. The pressure relief is 1000 PSI for high torque
applicactions for improved performance. (5.2 Lock to lock wheel turns).
Single engine 75‑150 HP OB (Includes new 150 HP 4 stroke)
64-891665Q01
CYLINDER WITH COMPRESSION STYLE FITTINGS Front Mount 1.5 cu in displacement. Approximately 5 turns lock to lock on singles
and 10 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 175‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
QUICKSILVER® RIGGING 8M0050097 HYDRAULIC HELM PUMP -Q/S
on 75‑115 4 stroke and 1.5L opti 75‑115 HP

Heavy Duty Hydraulic standard cylinder that uses compression hoses 8M0053474
‑ 8M005053491. This cylinder is tested to Mercury's rigid standards that include
higher loads and cycle testing to 300,000 cycles. It includes machined, high
strength fasteners, electro polished SS arm, and heavy duty triple seal cartridges
for enhanced duribility and longevity
135‑300 HP OPTI Max Outboards and 4 Cylinder Verado (Hydraulic only) Use on
single, dual and triple installations
64-891665Q04
Front Mount 2.0 cu in displacement. Approximately 4 turns lock to lock on singles
and 8 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
64-891665Q05
Front Mount 2.4 cu in displacement. Approximately 3 turns lock to lock on singles
and 6.5 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
