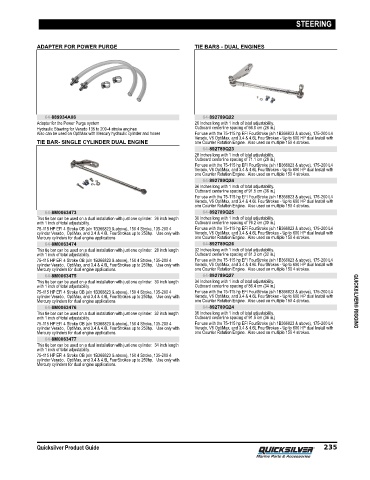

Page 244 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

ADAPTER FOR POWER PURGE TIE BARS - DUAL ENGINES

64-889934A06 64-892789Q22
Adapter for the Power Purge system 26 Inches long with 1 inch of total adjustability.
Hydraulic Steering for Verado 135 to 200‑4 stroke engines Outboard centerline spacing of 66.0 cm (26 in.)
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
TIE BAR- SINGLE CYLINDER DUAL ENGINE one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q23
28 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 71.1 cm (28 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q24
36 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 91.5 cm (36 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-8M0063473 64-892789Q25
This tie bar can be used on a dual installation with just one cylinder. 26 inch length 30 Inches long with 1 inch of total adjustability.
with 1 inch of total adjustability. Outboard centerline spacing of 76.2 cm (30 in.)
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
Mercury cylinders for dual engine applications one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-8M0063474 64-892789Q26
This tie bar can be used on a dual installation with just one cylinder. 28 inch length 32 Inches long with 1 inch of total adjustability.
with 1 inch of total adjustability. Outboard centerline spacing of 81.3 cm (32 in.)
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
Mercury cylinders for dual engine applications. one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-8M0063475 64-892789Q27
This tie bar can be used on a dual installation with just one cylinder. 30 inch length 34 Inches long with 1 inch of total adjustability.
with 1 inch of total adjustability. Outboard centerline spacing of 86.4 cm (34 in.)
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
Mercury cylinders for dual engine applications. one Counter Rotation Engine. Also used on multiple 150 4 strokes. QUICKSILVER® RIGGING
64-8M0063476 64-892789Q24
This tie bar can be used on a dual installation with just one cylinder. 32 inch length 36 Inches long with 1 inch of total adjustability.
with 1 inch of total adjustability. Outboard centerline spacing of 91.5 cm (36 in.)
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
Mercury cylinders for dual engine applications. one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-8M0063477
This tie bar can be used on a dual installation with just one cylinder. 34 inch length
with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications.
