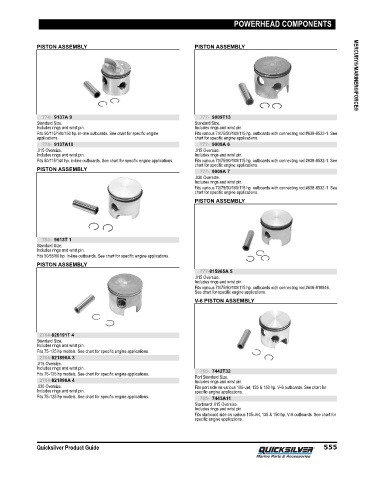

Page 564 - Quicksilver Product Guide (2020) - 8M0163242

POWERHEAD COMPONENTS

PISTON ASSEMBLY PISTON ASSEMBLY MERCURY®/MARINER®/FORCE®

774- 9137A 9 777- 9009T13
Standard Size. Standard Size.
Includes rings and wrist pin. Includes rings and wrist pin.
Fits 50/115/140/150 hp. in‑line outboards. See chart for specific engine Fits various 70/75/90/100/115 hp. outboards with connecting rod #638‑8532‑1. See
applications. chart for specific engine applications.
774- 9137A10 777- 9009A 6
.015 Oversize. .015 Oversize.
Includes rings and wrist pin. Includes rings and wrist pin.
Fits 50/115/140 hp. in‑line outboards. See chart for specific engine applications. Fits various 70/75/90/100/115 hp. outboards with connecting rod #638‑8532‑1. See
chart for specific engine applications.
PISTON ASSEMBLY
777- 9009A 7
.030 Oversize.
Includes rings and wrist pin.
Fits various 70/75/90/100/115 hp. outboards with connecting rod #638‑8532‑1. See
chart for specific engine applications.
PISTON ASSEMBLY

783- 9613T 1
Standard Size.
Includes rings and wrist pin.
Fits 50/55/60 hp. in‑line outboards. See chart for specific engine applications.
PISTON ASSEMBLY
777-815965A 5
.015 Oversize.
Includes rings and wrist pin.
Fits various 70/75/90/100/115 hp. outboards with connecting rod #646‑818846.
See chart for specific engine applications.
V-6 PISTON ASSEMBLY

2704-826191T 4
Standard Size.
Includes rings and wrist pin.
Fits 75‑125 hp models. See chart for specific engine applications.
2704-821896A 3
.015 Oversize.
Includes rings and wrist pin.
Fits 75‑125 hp models. See chart for specific engine applications. 765- 7442T32
2704-821896A 4 Port Standard Size.
Includes rings and wrist pin.
.030 Oversize. Fits port side on various 105‑Jet, 135 & 150 hp. V‑6 outboards. See chart for
Includes rings and wrist pin. specific engine applications.
Fits 75‑125 hp models. See chart for specific engine applications. 765- 7443A11
Starboard .015 Oversize.
Includes rings and wrist pin.
Fits starboard side on various 105‑Jet, 135 & 150 hp. V‑6 outboards. See chart for
specific engine applications.

Quicksilver Product Guide 555
