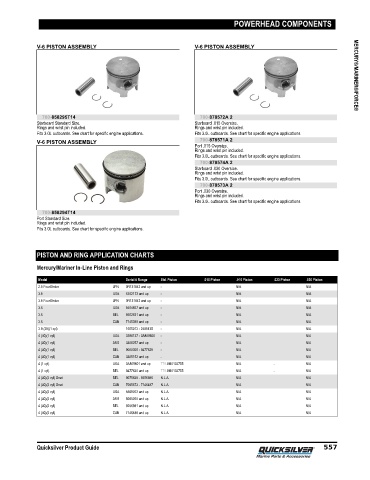

Page 566 - Quicksilver Product Guide (2020) - 8M0163242

POWERHEAD COMPONENTS

V-6 PISTON ASSEMBLY V-6 PISTON ASSEMBLY MERCURY®/MARINER®/FORCE®

700-858295T14 700-878572A 2
Starboard Standard Size. Starboard .015 Oversize.
Rings and wrist pin included. Rings and wrist pin included.
Fits 3.0L outboards. See chart for specific engine applications. Fits 3.0L outboards. See chart for specific engine applications.
700-878571A 2
V-6 PISTON ASSEMBLY
Port .015 Oversize.
Rings and wrist pin included.
Fits 3.0L outboards. See chart for specific engine applications.
700-878574A 2
Starboard .030 Oversize.
Rings and wrist pin included.
Fits 3.0L outboards. See chart for specific engine applications.
700-878573A 2
Port .030 Oversize.
Rings and wrist pin included.
Fits 3.0L outboards. See chart for specific engine applications.
700-858294T14
Port Standard Size.
Rings and wrist pin included.
Fits 3.0L outboards. See chart for specific engine applications.

PISTON AND RING APPLICATION CHARTS
Mercury/Mariner In‑Line Piston and Rings

Model Serial # Range Std. Piston .010 Piston .015 Piston .020 Piston .030 Piston
2.5 FourStroke JPN 0R131842 and up - N/A N/A
3.5 USA 6202173 and up - N/A N/A
3.5 FourStroke JPN 0R131842 and up - N/A N/A
3.6 USA 5404657 and up - N/A N/A
3.6 BEL 9252831 and up - N/A N/A
3.6 CAN 7145388 and up - N/A N/A
3.9 (39)(1 cyl) 1655013 - 2498135 - N/A N/A
4 (40)(1 cyl) USA 3296127 - 0A809600 - N/A N/A
4 (40)(1 cyl) AUS 3306257 and up - N/A N/A
4 (40)(1 cyl) BEL 9000306 - 9477829 - N/A N/A
4 (40)(1 cyl) CAN 3305152 and up - N/A N/A
4 (1 cyl) USA 0A809601 and up 779-8M0103755 N/A - N/A
4 (1 cyl) BEL 9477830 and up 779-8M0103755 N/A - N/A
4 (40)(2 cyl) Gnat BEL 9075839 - 9256980 N.L.A. N/A N/A
4 (40)(2 cyl) Gnat CAN 7085673 - 7146487 N.L.A. N/A N/A
4 (40)(2 cyl) USA 5589202 and up N.L.A. N/A N/A
4 (40)(2 cyl) AUS 8065265 and up N.L.A. N/A N/A
4 (40)(2 cyl) BEL 9256981 and up N.L.A. N/A N/A
4 (40)(2 cyl) CAN 7146488 and up N.L.A. N/A N/A
