IGNITION

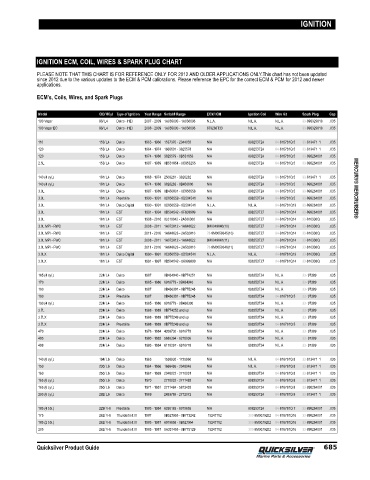

IGNITION ECM, COIL, WIRES & SPARK PLUG CHART
PLEASE NOTE THAT THIS CHART IS FOR REFERENCE ONLY FOR 2012 AND OLDER APPLICATIONS ONLY.This chart has not been updated
since 2012 due to the various updates to the ECM & PCM calibrations. Please reference the EPC for the correct ECM & PCM for 2012 and newer
applications.
ECM's, Coils, Wires, and Spark Plugs
Model CID/ #Cyl Type of Ignition Year Range Serial # Range ECM/ ICM Ignition Coil Wire Kit Spark Plug Gap
100 Vazer 98/ L4 Delco - HEI 2007 - 2009 1A035000 - 1A036006 N.L.A. N.L.A. N.L.A. 33-896329818 .035
100 Vazer EC 98/ L4 Delco - HEI 2008 - 2009 1A035000 - 1A036006 879288T33 N.L.A. N.L.A. 33-896329818 .035
110 153/ L4 Delco 1963 - 1966 1537370 - 2044033 N/A 898253T24 84-816761Q 5 33-813471 1 .035
120 153/ L4 Delco 1964 - 1974 1666601 - 3825578 N/A 898253T24 84-816761Q 5 33-813471 1 .035
120 153/ L4 Delco 1974 - 1986 3825579 - 0B531853 N/A 898253T24 84-816761Q 5 33-898264001 .035
2.5L 153/ L4 Delco 1987 - 1989 0B531854 - 0C853255 N/A 898253T24 84-816761Q 5 33-898264001 .035
140 (4 cyl.) 181/ L4 Delco 1968 - 1974 2508261 - 3826282 N/A 898253T24 84-816761Q 5 33-813471 1 .035
140 (4 cyl.) 181/ L4 Delco 1974 - 1986 3826283 - 0B450800 N/A 898253T24 84-816761Q 5 33-898264001 .035
3.0L 181/ L4 Delco 1987 - 1989 0B450801 - 0C856558 N/A 898253T24 84-816761Q 5 33-898264001 .035 MERCURY® MERCRUISER®
3.0L 181/ L4 Prestolite 1990 - 1991 0C856559 - 0D504541 N/A 898253T24 84-816761Q 5 33-898264001 .035
3.0L 181/ L4 Delco Digital 1990 - 1991 0C856559 - 0D504541 N.L.A. N.L.A. 84-816761Q13 33-898264001 .035
3.0L 181/ L4 EST 1991 - 1994 0D504542 - 0F603999 N/A 898253T27 84-816761Q14 33-898264001 .035
3.0L 181/ L4 EST 1998 - 2016 0L010042 - 2A506300 N/A 898253T27 84-816761Q14 33-816336Q .035
3.0L MPI - RWC 181/ L4 EST 2008 - 2011 1A072812 - 1A648622 8M0049840(10) 898253T27 84-816761Q14 33-816336Q .035
3.0L MPI - RWC 181/ L4 EST 2011 - 2016 1A648623 - 2A502810 78-8M0059345(10) 898253T27 84-816761Q14 33-816336Q .035
3.0L MPI - FWC 181/ L4 EST 2008 - 2011 1A072812 - 1A648622 8M0049841(11) 898253T27 84-816761Q14 33-816336Q .035
3.0L MPI - FWC 181/ L4 EST 2011 - 2016 1A648623 - 2A502810 78-8M0059346(11) 898253T27 84-816761Q14 33-816336Q .035
3.0LX 181/ L4 Delco Digital 1990 - 1991 0C856559 - 0D504541 N.L.A. N.L.A. 84-816761Q13 33-816336Q .035
3.0LX 181/ L4 EST 1991 - 1997 0D504542 - 0K999999 N/A 898253T27 84-816761Q14 33-816336Q .035
165 (4 cyl.) 224/ L4 Delco 1987 0B434940 - 0B774251 N/A 898253T24 N.L.A. 33- 97389 .035
170 224/ L4 Delco 1985 - 1986 6916779 - 0B434940 N/A 898253T24 N.L.A. 33- 97389 .035
180 224/ L4 Delco 1987 0B436391 - 0B775248 N/A 898253T24 N.L.A. 33- 97389 .035
180 224/ L4 Prestolite 1987 0B436391 - 0B775248 N/A 898253T24 84-816761Q 5 33- 97389 .035
190 (4 cyl.) 224/ L4 Delco 1985 - 1986 6916779 - 0B436390 N/A 898253T24 N.L.A. 33- 97389 .035
3.7L 224/ L4 Delco 1988 - 1989 0B774252 and up N/A 898253T24 N.L.A. 33- 97389 .035
3.7LX 224/ L4 Delco 1988 - 1989 0B775249 and up N/A 898253T24 N.L.A. 33- 97389 .035
3.7LX 224/ L4 Prestolite 1988 - 1989 0B775249 and up N/A 898253T24 84-816761Q 5 33- 97389 .035
470 224/ L4 Delco 1976 - 1984 4208730 - 6916778 N/A 898253T24 N.L.A. 33- 97389 .035
485 224/ L4 Delco 1980 - 1982 5685394 - 6218036 N/A 898253T24 N.L.A. 33- 97389 .035
488 224/ L4 Delco 1983 - 1984 6170297 - 6916778 N/A 898253T24 N.L.A. 33- 97389 .035
140 (6 cyl.) 194/ L6 Delco 1963 1538930 - 1725960 N/A N.L.A. 84-816761Q 8 33-813471 1 .035
150 230/ L6 Delco 1964 - 1966 1666495 - 2048046 N/A N.L.A. 84-816761Q 8 33-813471 1 .035
160 250/ L6 Delco 1967 - 1969 2048022 - 2770031 N/A 898253T24 84-816761Q 8 33-813471 1 .035
165 (6 cyl.) 250/ L6 Delco 1970 2770032 - 2771483 N/A 898253T24 84-816761Q 8 33-813471 1 .035
165 (6 cyl.) 250/ L6 Delco 1971 - 1981 2771484 - 5813433 N/A 898253T24 84-816761Q 8 33-898264001 .035
200 (6 cyl.) 292/ L6 Delco 1969 2453769 - 2712072 N/A 898253T24 84-816761Q 8 33-813471 1 .035
185 (4 bbl.) 229/ V-6 Prestolite 1983 - 1984 6330183 - 6919655 N/A 898253T24 84-816761Q 7 33-898264001 .035
175 262/ V-6 Thunderbolt IV 1987 0B527955 - 0B773242 15247T02 300-8M0079202 84-816761Q16 33-898264001 .035
185 (2 bbl.) 262/ V-6 Thunderbolt IV 1985 - 1987 6919656 - 0B527954 15247T02 300-8M0079202 84-816761Q16 33-898264001 .035
205 262/ V-6 Thunderbolt IV 1985 - 1987 0A331455 - 0B775129 15247T02 300-8M0079202 84-816761Q16 33-898264001 .035
Quicksilver Product Guide 685
