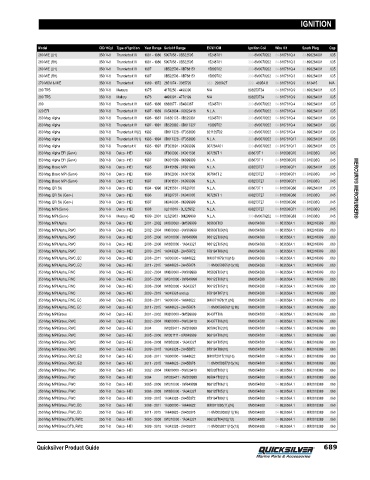

Page 698 - Quicksilver Product Guide (2020) - 8M0163242

IGNITION

Model CID/ #Cyl Type of Ignition Year Range Serial # Range ECM/ ICM Ignition Coil Wire Kit Spark Plug Gap
260 MIE (LH) 350/ V-8 Thunderbolt IV 1981 - 1986 5907058 - 0B522505 15248T01 300-8M0079202 84-816761Q 4 33-898264001 .035
260 MIE (RH) 350/ V-8 Thunderbolt IV 1981 - 1986 5907058 - 0B522505 15248T01 300-8M0079202 84-816761Q 3 33-898264001 .035
260 MIE (LH) 350/ V-8 Thunderbolt IV 1987 0B522506 - 0B788151 15899T02 300-8M0079202 84-816761Q 4 33-898264001 .035
260 MIE (RH) 350/ V-8 Thunderbolt IV 1987 0B522506 - 0B788151 15899T02 300-8M0079202 84-816761Q 3 33-898264001 .035
270 MCM & MIE 350/ V-8 Thunderbolt 1969 - 1972 2851074 - 3385720 332- 2986A27 332- 4895A 8 84-816761Q 9 33-813415 N/A
280 TRS 350/ V-8 Mercury 1975 4176250 - 4499390 N/A 898253T24 84-816761Q 9 33-898264001 .035
280 TRS 350/ V-8 Mallory 1976 4499391 - 4770199 N/A 898253T24 84-816761Q 9 33-898264001 .035
300 350/ V-8 Thunderbolt IV 1985 - 1986 6668677 - 0B430367 15248T01 300-8M0079202 84-816761Q 4 33-898264001 .035
320 EFI 350/ V-8 Thunderbolt IV 1987 - 1989 0A543604 - 0C622418 N.L.A. 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV 1986 - 1987 0A635178 - 0B525981 15248T01 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV 1987 - 1991 0B525982 - 0D617327 15899T02 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV(2) 1992 0D617328 - 0F353690 821125T02 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV(1) 1993 - 1994 0D617328 - 0F353690 N.L.A. 300-8M0079202 84-816761Q17 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt V 1995 - 1997 0F353691 - 0K999999 807264A01 300-8M0079202 84-816761Q17 33-898264001 .035
350 Mag. Alpha EFI (Gen+) 350/ V-8 Delco - HEI 1996 0F800300 - 0K001508 807269T 1 806673T 1 84-816608Q70 33-816336Q .045
350 Mag. Alpha EFI (Gen+) 350/ V-8 Delco - HEI 1997 0K001509 - 0K999999 N.L.A. 806673T 1 84-816608Q70 33-816336Q .045
350 Mag. Bravo MPI 350/ V-8 Delco - HEI 1995 0F415189 - 0F601999 N.L.A. 898253T27 84-816608Q71 33-898264001 .035
350 Mag. Bravo MPI (Gen+) 350/ V-8 Delco - HEI 1996 0F602000 - 0K001500 807646T 2 898253T27 84-816608Q71 33-816336Q .045
350 Mag. Bravo MPI (Gen+) 350/ V-8 Delco - HEI 1997 0F001501 - 0K999999 N.L.A. 898253T27 84-816608Q71 33-816336Q .045
350 Mag. EFI Ski 350/ V-8 Delco - HEI 1994 - 1996 0F215561 - 0F820706 N.L.A. 806673T 1 84-816608Q68 33-898264001 .035 MERCURY® MERCRUISER®
350 Mag. EFI Ski (Gen+) 350/ V-8 Delco - HEI 1996 0F820707 - 0K040005 807269T 1 898253T27 84-816608Q68 33-816336Q .045
350 Mag. EFI Ski (Gen+) 350/ V-8 Delco - HEI 1997 0K040006 - 0K999999 N.L.A. 898253T27 84-816608Q68 33-816336Q .045
350 Mag. MPI (Gen+) 350/ V-8 Delco - HEI 1998 0L010019 - 0L325952 N.L.A. 898253T27 84-816608Q71 33-816336Q .045
350 Mag. MPI (Gen+) 350/ V-8 Mercury -HEI 1999 - 2001 0L325953 - 0M299999 N.L.A. 300-8M0079202 84-816608Q83 33-816336Q .045
350 Mag. MPI Alpha 350/ V-8 Delco - HEI 2001 - 2002 0M300000 - 0M599999 865838T03 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, RWC 350/ V-8 Delco - HEI 2002 - 2004 0M600000 - 0W309999 865838T03(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, RWC 350/ V-8 Delco - HEI 2005 - 2006 0W310000 - 0W649999 866122T06(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, RWC 350/ V-8 Delco - HEI 2006 - 2008 0W650000 - 1A343327 866122T05(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, RWC 350/ V-8 Delco - HEI 2009 - 2015 1A343328 - 2A455872 879194T86(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, RWC, EC 350/ V-8 Delco - HEI 2008 - 2011 1A300000 - 1A648622 8M0071879(10)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, RWC, EC 350/ V-8 Delco - HEI 2011 - 2015 1A648623 - 2A455878 78-8M0059355(10)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, FWC 350/ V-8 Delco - HEI 2002 - 2004 0M600000 - 0W309999 865839T03(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, FWC 350/ V-8 Delco - HEI 2005 - 2006 0W310000 - 0W649999 866123T06(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, FWC 350/ V-8 Delco - HEI 2006 - 2008 0W650000 - 1A343327 866123T05(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, FWC 350/ V-8 Delco - HEI 2009 - 2019 1A343328 and up 879194T87(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, FWC, EC 350/ V-8 Delco - HEI 2008 - 2011 1A300000 - 1A648622 8M0071878(11)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Alpha, FWC, EC 350/ V-8 Delco - HEI 2011 - 2015 1A648623 - 2A455878 78-8M0059356(11)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo 350/ V-8 Delco - HEI 2001 - 2002 0M300000 - 0M599999 864377T06 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, RWC 350/ V-8 Delco - HEI 2002 - 2004 0M600000 - 0W029410 864377T06(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, RWC 350/ V-8 Delco - HEI 2004 0W029411 - 0W309999 865840T02(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, RWC 350/ V-8 Delco - HEI 2005 - 2006 0W301111 - 0W649999 866124T06(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, RWC 350/ V-8 Delco - HEI 2006 - 2008 0W650000 - 1A343327 866124T05(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, RWC 350/ V-8 Delco - HEI 2009 - 2015 1A343328 - 2A455872 879194T88(10) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, RWC, EC 350/ V-8 Delco - HEI 2008 - 2011 1A300000 - 1A648622 8M0072017(10)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, RWC, EC 350/ V-8 Delco - HEI 2011 - 2015 1A648623 - 2A455878 78-8M0059357(10)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, FWC 350/ V-8 Delco - HEI 2002 - 2004 0M600000 - 0W029410 865005T03(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, FWC 350/ V-8 Delco - HEI 2004 0W029411 - 0W309999 865841T02(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, FWC 350/ V-8 Delco - HEI 2005 - 2006 0W310000 - 0W649999 866125T06(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, FWC 350/ V-8 Delco - HEI 2006 - 2008 0W650000 - 1A343327 866125T05(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, FWC 350/ V-8 Delco - HEI 2009 - 2015 1A343328 - 2A455872 879194T89(11) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, FWC, EC 350/ V-8 Delco - HEI 2008 - 2011 1A300000 - 1A648622 8M0071880(11)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo, FWC, EC 350/ V-8 Delco - HEI 2011 - 2015 1A648623 - 2A455878 78-8M0059358(11)(16) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo DTS, RWC 350/ V-8 Delco - HEI 2005 - 2008 0W310000 - 1A343327 866238T04(10)(13) 8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Bravo DTS, RWC 350/ V-8 Delco - HEI 2009 - 2015 1A343328 - 2A455872 78-8M0059271(10)(13) 8M0054588 84-863656A 1 33-8M2018369 .060
