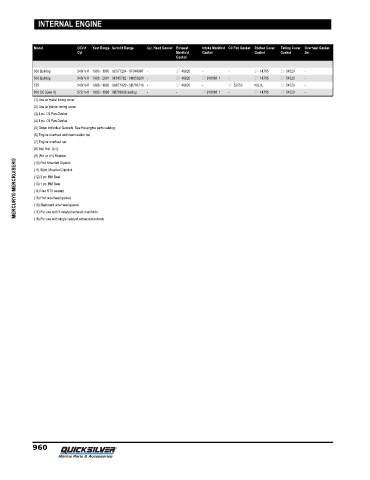

INTERNAL ENGINE

Model CID/ # Year Range Serial # Range Cyl. Head Gasket Exhaust Intake Manifold Oil Pan Gasket Rocker Cover Timing Cover Overhaul Gasket
Cyl Manifold Gasket Gasket Gasket Set
Gasket

500 Bulldog 540/ V-8 1990 - 1995 0C577254 - 0F348987 - 27- 46820 - - 27- 14765 27- 54529 -
500 Bulldog 540/ V-8 1996 - 2001 0F615762 - 0M050281 - 27- 46820 27-818188 1 - 27- 14765 27- 54529 -
575 540/ V-8 1986 - 1992 0A677429 - 0D763716 - 27- 46820 - 27- 52550 N.L.A. 27- 54529 -
800 SC (Gen V) 572/ V-8 1993 - 1998 0D763836 and up - - 27-818188 1 - 27- 14765 27- 54529 -
(1) Use w/ metal timing cover
(2) Use w/ plastic timing cover
(3) 4 pc. Oil Pan Gasket
(4) 1 pc. Oil Pan Gasket
(5) Order Individual Gaskets. See the engine parts catalog.
(6) Engine overhaul and marinization set
(7) Engine overhaul set
(8) Std. Rot. (LH)
(9) (RH or LH) Rotation
MERCURY® MERCRUISER® (12) 2 pc. RM Seal
(10) Port Mounted Dipstick
(11) Stbd. Mounted Dipstick

(13) 1 pc. RM Seal
(14) Use RTV sealant
(15) Port side head gasket
(16) Starboard side head gasket
(17) For use with 3 catalyst exhaust manifolds
(18) For use with single catalyst exhaust manifolds

960
