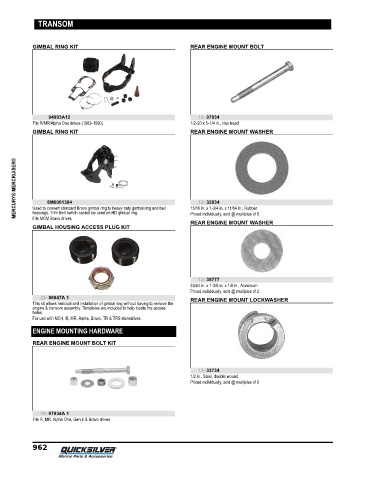

Page 971 - Quicksilver Product Guide (2020) - 8M0163242

TRANSOM

GIMBAL RING KIT REAR ENGINE MOUNT BOLT

94993A12 10- 97934
Fits R/MR/Alpha One drives (1983‑1990) 1/2‑20 x 5‑1/4 in., Hex head
GIMBAL RING KIT REAR ENGINE MOUNT WASHER

MERCURY® MERCRUISER® 8M0061384 12- 32834

Used to convert standard Bravo gimbal ring to heavy duty gimbal ring and bell
15/16 in. x 1‑3/4 in. x 11/64 in., Rubber
housings. Trim limit switch cannot be used on HD gimbal ring.
Priced individually, sold @ multiples of 5
Fits MCM Bravo drives
REAR ENGINE MOUNT WASHER
GIMBAL HOUSING ACCESS PLUG KIT

12- 35777
33/64 in. x 1‑3/8 in. x 1/8 in., Aluminum
Priced individually, sold @ multiples of 2
22- 88847A 1 REAR ENGINE MOUNT LOCKWASHER
This kit allows removal and installation of gimbal ring without having to remove the
engine & transom assembly. Templates are included to help locate the access
holes.
For use with MC‑I, R, MR, Alpha, Bravo, TR & TRS sterndrives
ENGINE MOUNTING HARDWARE

REAR ENGINE MOUNT BOLT KIT

13- 33734
1/2 in., Steel, double wound
Priced individually, sold @ multiples of 5

10- 97934A 1
Fits R, MR, Alpha One, Gen II & Bravo drives
