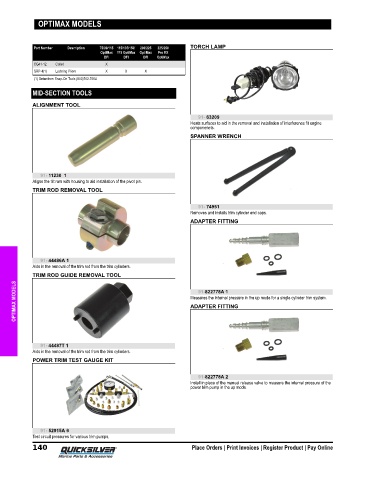

Page 147 - Mercury Service Tool Guide (2020) - 8M0163249

OPTIMAX MODELS

Part Number Description 75/90/115 115/135/150/ 200/225 225/250 TORCH LAMP
OptiMax 175 OptiMax OptiMax Pro EX
DFI DFI DFI OptiMax
CG41-12 Collet X
SRP-4(1) Lockring Pliers X X X
(1) Order from Snap-On Tools (800)762-7664
MID-SECTION TOOLS

ALIGNMENT TOOL

91- 63209
Heats surfaces to aid in the removal and installation of interference fit engine
componenets.
SPANNER WRENCH

91- 11230 1
Aligns the tilt ram with housing to aid installation of the pivot pin.
TRIM ROD REMOVAL TOOL

91- 74951
Removes and installs trim cylinder end caps.
ADAPTER FITTING

91- 44486A 1
Aids in the removal of the trim rod from the trim cylinders.
TRIM ROD GUIDE REMOVAL TOOL
OPTIMAX MODELS Measures the internal pressure in the up mode for a single cylinder trim system.
91-822778A 1

ADAPTER FITTING

91- 44487T 1
Aids in the removal of the trim rod from the trim cylinders.
POWER TRIM TEST GAUGE KIT

91-822778A 2
Install in place of the manual release valve to measure the internal pressure of the
power trim pump in the up mode.

91- 52915A 6
Test circuit pressures for various trim pumps.
