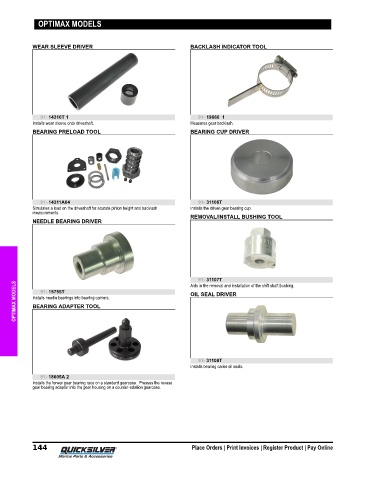

OPTIMAX MODELS
WEAR SLEEVE DRIVER BACKLASH INDICATOR TOOL
91- 14310T 1 91- 19660 1
Installs wear sleeve onto driveshaft. Measures gear backlash.
BEARING PRELOAD TOOL BEARING CUP DRIVER
91- 14311A04 91- 31106T
Simulates a load on the driveshaft for acurate pinion height and backlash Installs the driven gear bearing cup.
measurements.
REMOVAL/INSTALL BUSHING TOOL
NEEDLE BEARING DRIVER
91- 31107T
OPTIMAX MODELS Installs needle bearings into bearing carriers. OIL SEAL DRIVER
Aids in the removal and installation of the shift shaft bushing.
91- 15755T
BEARING ADAPTER TOOL
91- 31108T
Installs bearing carier oil seals.
91- 18605A 2
Installs the forwar gear bearing race on a standard gearcase. Presses the revese
gear bearing adapter into the gear housing on a counter‑rotation gearcase.
