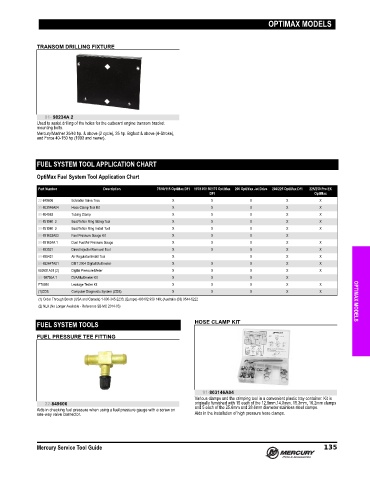

OPTIMAX MODELS

TRANSOM DRILLING FIXTURE

91- 98234A 2
Used to assist drilling of the holes for the outboard engine transom bracket
mounting bolts.
Mercury/Mariner 30/40 hp. & above (2 cycle), 25 hp. Bigfoot & above (4‑Stroke),
and Force 40‑150 hp (1993 and newer).

FUEL SYSTEM TOOL APPLICATION CHART

OptiMax Fuel System Tool Application Chart
Part Number Description 75/90/115 OptiMax DFI 115/135/150/175 OptiMax 200 OptiMax Jet Drive 200/225 OptiMax DFI 225/250 Pro EX
DFI OptiMax
22-849606 Schrader Valve Tree X X X X X
91-803146A04 Hose Clamp Tool Kit X X X X X
91-804063 Tubing Clamp X X X X X
91-851980 2 Seal/Teflon Ring Sizing Tool X X X X X
91-851980 3 Seal/Teflon Ring Install Tool X X X X X
91-881833A03 Fuel Pressure Gauge Kit X X X X
91-881834A 1 Duel Fuel/Air Pressure Gauge X X X X X
91-883521 Direst Injector Removal Tool X X X X X
91-889431 Air Regulator Install Tool X X X X
91-892647A01 DMT 2004 Digital Multimeter X X X X X
892651A01 (2) Digital Pressure Meter X X X X X
91- 99750A 1 DVA/Multimeter Kit X X X X
FT8950 Leakage Tester Kit X X X X X
(1)CDS Computer Diagnostic System (CDS) X X X X X
(1) Order Through Bosch (USA and Canada) 1-800-345-2233; (Europe) 496182 959 149; (Australia (03) 9544-6222 OPTIMAX MODELS
(2) NLA (No Longer Available - Reference SB MC 2014-03)

FUEL SYSTEM TOOLS HOSE CLAMP KIT

FUEL PRESSURE TEE FITTING

91-803146A04
Various clamps and the crimping tool in a convenient plastic tray container. Kit is
22-849606 originally furnished with 15 each of the 12.8mm,14.0mm, 15.3mm, 16.2mm clamps
Aids in checking fuel pressure when using a fuel pressure gauge with a screw on and 5 each of the 25.6mm and 28.6mm diameter stainless steel clamps.
one‑way valve connector. Aids in the installation of high pressure hose clamps.
