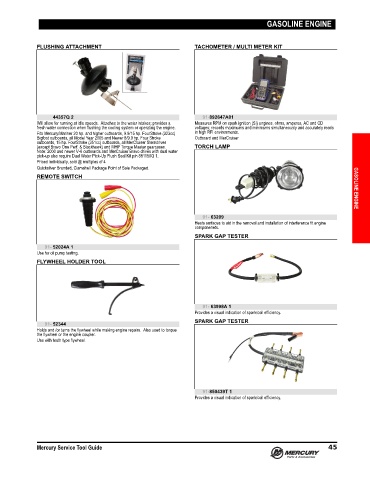

Page 52 - Mercury Service Tool Guide (2020) - 8M0163249

GASOLINE ENGINE

FLUSHING ATTACHMENT TACHOMETER / MULTI METER KIT

44357Q 2 91-892647A01
Will allow for running at idle speeds. Attaches to the water intakes; provides a Measures RPM on spark ignition (SI) engines. ohms, amperes, AC and CD
fresh water connection when flushing the cooling system or operating the engine. voltages; records maximums and minimums simultaneously and accurately reads
Fits Mercury/Mariner 20 hp. and higher outboards, 9.9/15 hp. FourStroke (323cc) in high RFI environments.
Bigfoot outboards, all Model Year 2005 and Newer 8/9.9 hp. Four Stroke Outboard and MerCruiser
outboards, 15 hp. FourStroke (351cc) outboards, all MerCruiser Sterndrives
(except Bravo One Perf. & Blackhawk) and MHP Torque Master gearcases. TORCH LAMP
Note: 2000 and newer V‑6 outboards and MerCruiser Bravo drives with dual water
pick‑up also require Dual Water Pick‑Up Flush Seal Kit p/n 881150Q 1.
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
REMOTE SWITCH GASOLINE ENGINE

91- 63209
Heats surfaces to aid in the removal and installation of interference fit engine
componenets.
SPARK GAP TESTER
91- 52024A 1
Use for oil pump testing.
FLYWHEEL HOLDER TOOL

91- 63998A 1
Provides a visual indication of spark/coil efficiency.
SPARK GAP TESTER
91- 52344
Holds and /or turns the flywheel while making engine repairs. Also used to torque
the flywheel or the engine coupler.
Use with teeth type flywheel.

91-850439T 1
Provides a visual indication of spark/coil efficiency.

Mercury Service Tool Guide 45
