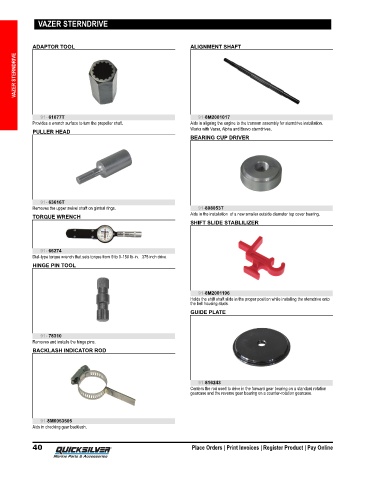

Page 47 - Mercury Service Tool Guide (2020) - 8M0163249
P. 47
VAZER STERNDRIVE
ADAPTOR TOOL ALIGNMENT SHAFT
VAZER STERNDRIVE
91- 61077T 91-8M2001017
Provides a wrench surface to turn the propeller shaft. Aids in aligning the engine to the transom assembly for sterndrive installation.
Works with Vazer, Alpha and Bravo sterndrives.
PULLER HEAD
BEARING CUP DRIVER
91- 63616T
Removes the upper swivel shaft on gimbal rings. 91-808053T
Aids in the installation of a new smaller outside diameter top cover bearing.
TORQUE WRENCH
SHIFT SLIDE STABLILIZER
91- 66274
Dial‑type torque wrench that sets torque from 9 to 0‑150 lb‑in. .375 inch drive.
HINGE PIN TOOL
91-8M2001196
Holds the shift shaft slide in the proper position while installing the sterndrive onto
the bell housing studs.
GUIDE PLATE
91- 78310
Removes and installs the hinge pins.
BACKLASH INDICATOR ROD
91-816243
Centers the rod used to drive in the forward gear bearing on a standard rotation
gearcase and the reverse gear bearing on a counter‑rotation gearcase.
91-8M0053505
Aids in checking gear backlash.
