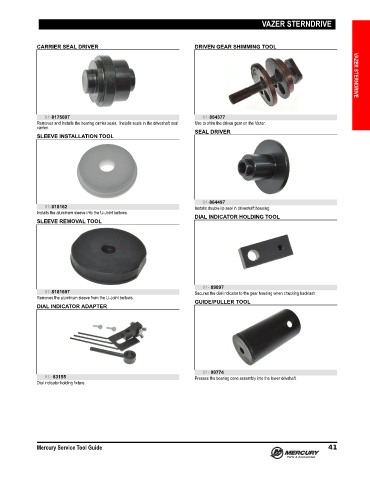

VAZER STERNDRIVE



             CARRIER SEAL DRIVER                                 DRIVEN GEAR SHIMMING TOOL                            VAZER STERNDRIVE













                91-817569T                                          91-854377
             Removes and installs the bearing carrier seals.  Installs seals in the driveshaft seal  Use to shim the driven gear on the Vazer.
             carrier.
                                                                 SEAL DRIVER
             SLEEVE INSTALLATION TOOL











                                                                    91-864497
                91-818162                                        Installs double lip seal in driveshaft housing.
             Installs the aluminum sleeve into the U‑Joint bellows.
                                                                 DIAL INDICATOR HOLDING TOOL
             SLEEVE REMOVAL TOOL












                                                                    91- 89897
                91-818169T                                       Secures the dial indicator to the gear housing when checking backlash.
             Removes the aluminum sleeve from the U‑Joint bellows.
                                                                 GUIDE/PULLER TOOL
             DIAL INDICATOR ADAPTER











                                                                    91- 90774
                91- 83155                                        Presses the bearing cone assembly into the lower drivshaft.
             Dial indicator holding fixture.
