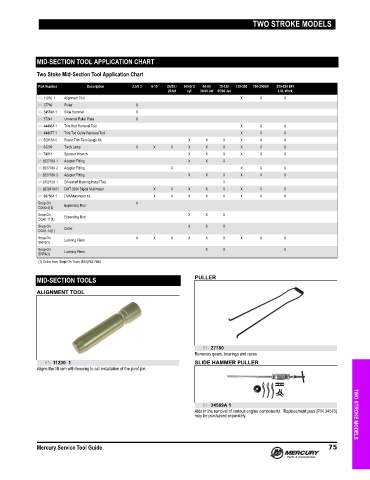

Page 82 - Mercury Service Tool Guide (2020) - 8M0163249

TWO STROKE MODELS

MID-SECTION TOOL APPLICATION CHART

Two Stoke Mid‑Section Tool Application Chart
Part Number Description 2.5/3.3 6-15 20/25 / 30/40/ 2 40-60 75-125 135-200 150-200EFI 200-250 EFI
20Jet cyl 30/40 Jet 65/80 Jet 3.0L Work
91- 11230 1 Alignment Tool X X X
91- 27780 Puller X
91- 34569A 1 Slide Hammer X
91- 37241 Universal Puller Plate X
91- 44486A 1 Trim Rod Removal Tool X X X
91- 44487T 1 Trim Tod Guide Removal Tool X X X
91- 52915A 6 Power Trim Test Gauge Kit X X X X X X
91- 63209 Torch Lamp X X X X X X X X X
91- 74951 Spanner Wrench X X X X X X
91-822778A 1 Adapter Fitting X X X
91-822778A 2 Adapter Fitting X X X X
91-822778A 3 Adapter Fitting X X X X X X
91-875215A 1 Driveshaft Bushing Install Tool X
91-892647A01 DMT 2004 Digital Multimeter X X X X X X X X
91- 99750A 1 DVA/Multimeter Kit X X X X X X X X
Snap-On Expanding Rod X
CG40-4(1)
Snap-On Expending Rod X X X
CG41-11(1)
Snap-On Collet X X X
CG41-14(1)
Snap-On Lockring Pliers X X X X X X X X X
SRP2(1)
Snap-On Lockring Pliers X X X
SRP4(1)
(1) Order from Snap-On Tools (800)762-7664

MID-SECTION TOOLS PULLER

ALIGNMENT TOOL

91- 27780
Removes gears, bearings and races.
91- 11230 1 SLIDE HAMMER PULLER
Aligns the tilt ram with housing to aid installation of the pivot pin.

91- 34569A 1
Aids in the removal of various engine components. Replacement jaws (P/N 34570)
may be purchased separately. TWO STROKE MODELS

Mercury Service Tool Guide 75
