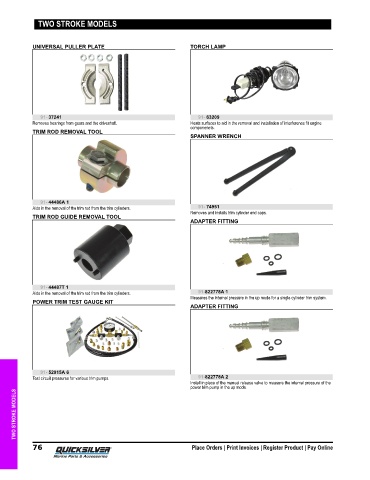

TWO STROKE MODELS
UNIVERSAL PULLER PLATE TORCH LAMP
91- 37241 91- 63209
Removes bearings from gears and the driveshaft. Heats surfaces to aid in the removal and installation of interference fit engine
componenets.
TRIM ROD REMOVAL TOOL
SPANNER WRENCH
91- 44486A 1
Aids in the removal of the trim rod from the trim cylinders. 91- 74951
Removes and installs trim cylinder end caps.
TRIM ROD GUIDE REMOVAL TOOL
ADAPTER FITTING
91- 44487T 1
Aids in the removal of the trim rod from the trim cylinders. 91-822778A 1
Measures the internal pressure in the up mode for a single cylinder trim system.
POWER TRIM TEST GAUGE KIT
ADAPTER FITTING
91- 52915A 6
Test circuit pressures for various trim pumps. 91-822778A 2
Install in place of the manual release valve to measure the internal pressure of the
power trim pump in the up mode.
TWO STROKE MODELS
