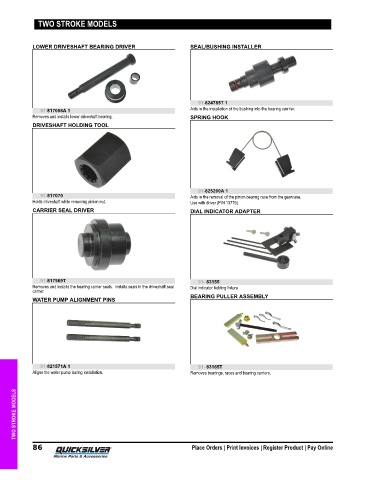

TWO STROKE MODELS
LOWER DRIVESHAFT BEARING DRIVER SEAL/BUSHING INSTALLER
91-824785T 1
91-817058A 1 Aids in the installation of the bushing into the bearing carrrier.
Removes and installs lower driveshaft bearing. SPRING HOOK
DRIVESHAFT HOLDING TOOL
91-825200A 1
91-817070 Aids in the removal of the pinion bearing race from the gearcase.
Holds driveshaft while removing pinion nut. Use with driver (P/N 13779).
CARRIER SEAL DRIVER DIAL INDICATOR ADAPTER
91-817569T 91- 83155
Removes and installs the bearing carrier seals. Installs seals in the driveshaft seal Dial indicator holding fixture.
carrier.
BEARING PULLER ASSEMBLY
WATER PUMP ALIGNMENT PINS
91-821571A 1 91- 83165T
Aligns the water pump during installation. Removes bearings, races and bearing carriers.
TWO STROKE MODELS
