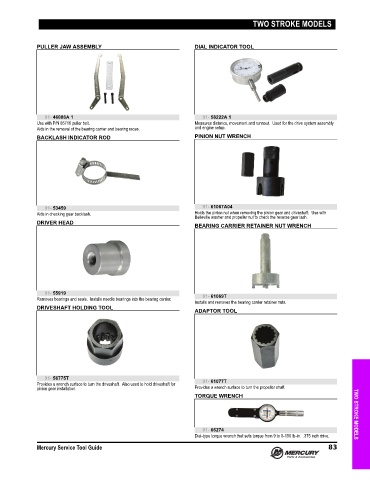

Page 90 - Mercury Service Tool Guide (2020) - 8M0163249
P. 90
TWO STROKE MODELS
PULLER JAW ASSEMBLY DIAL INDICATOR TOOL
91- 46086A 1 91- 58222A 1
Use with P/N 85716 puller bolt. Measures distance, movement and runnout. Used for the drive system assembly
Aids in the removal of the bearing carrier and bearing races. and engine setup.
BACKLASH INDICATOR ROD PINION NUT WRENCH
91- 53459 91- 61067A04
Aids in checking gear backlash. Holds the pinion nut when removing the pinion gear and driveshaft. Use with
Belleville washer and propeller nut to check the reverse gear lash.
DRIVER HEAD
BEARING CARRIER RETAINER NUT WRENCH
91- 55919
Removes bearings and seals. Installs needle bearings into the bearing carrier. 91- 61069T
Installs and removes the bearing carrier retainer nuts.
DRIVESHAFT HOLDING TOOL
ADAPTOR TOOL
91- 56775T
Provides a wrench surface to turn the driveshaft. Also used to hold driveshaft for 91- 61077T
pinion gear installation. Provides a wrench surface to turn the propeller shaft.
TORQUE WRENCH
91- 66274 TWO STROKE MODELS
Dial‑type torque wrench that sets torque from 9 to 0‑150 lb‑in. .375 inch drive.
Mercury Service Tool Guide 83
