Page 92 - Mercury Service Tool Guide (2020) - 8M0163249
P. 92

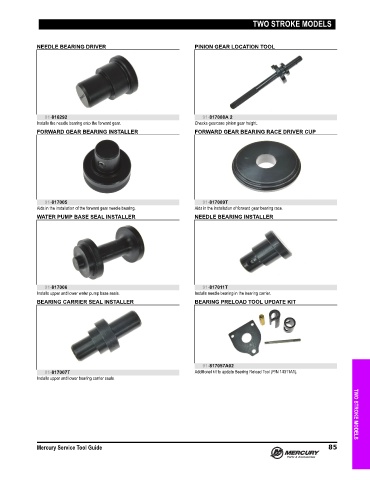

TWO STROKE MODELS
NEEDLE BEARING DRIVER PINION GEAR LOCATION TOOL
91-816292 91-817008A 2
Installs the needle bearing onto the forward gear. Checks gearcase pinion gear height.
FORWARD GEAR BEARING INSTALLER FORWARD GEAR BEARING RACE DRIVER CUP
91-817005 91-817009T
Aids in the installation of the forward gear needle bearing. Aids in the installation of forward gear bearing race.
WATER PUMP BASE SEAL INSTALLER NEEDLE BEARING INSTALLER
91-817006 91-817011T
Installs upper and lower water pump base seals. Installs needle bearing in the bearing carrier.
BEARING CARRIER SEAL INSTALLER BEARING PRELOAD TOOL UPDATE KIT
91-817057A02
91-817007T Additional kit to update Bearing Reload Tool (P/N 14311A1).
Installs upper and lower bearing carrier seals.
Mercury Service Tool Guide 85 TWO STROKE MODELS
