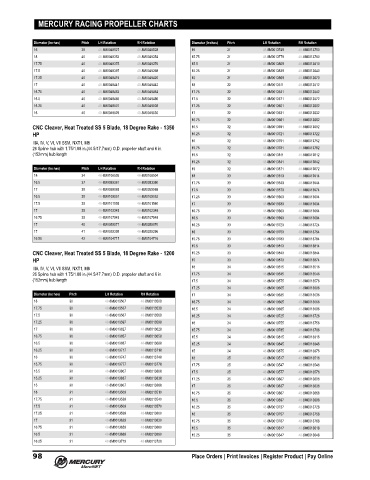

Page 105 - Mercury Propeller Guide (2021) - 8M0174460

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation Diameter (Inches) Pitch LH Rotation RH Rotation
16 39 48-8M0049527 48-8M0049528 16 31 48-8M0013749 48-8M0013750
18 40 48-8M0049353 48-8M0049354 15.75 31 48-8M0013779 48-8M0013780
17.75 40 48-8M0049375 48-8M0049376 15.5 31 48-8M0013809 48-8M0013810
17.5 40 48-8M0049397 48-8M0049398 15.25 31 48-8M0013839 48-8M0013840
17.25 40 48-8M0049419 48-8M0049420 15 31 48-8M0013869 48-8M0013870
17 40 48-8M0049441 48-8M0049442 18 32 48-8M0013511 48-8M0013512
16.75 40 48-8M0049463 48-8M0049464 17.75 32 48-8M0013541 48-8M0013542
16.5 40 48-8M0049485 48-8M0049486 17.5 32 48-8M0013571 48-8M0013572
16.25 40 48-8M0049507 48-8M0049508 17.25 32 48-8M0013601 48-8M0013602
16 40 48-8M0049529 48-8M0049530 17 32 48-8M0013631 48-8M0013632
16.75 32 48-8M0013661 48-8M0013662
CNC Cleaver, Heat Treated SS 5 Blade, 18 Degree Rake ‑ 1350 16.5 32 48-8M0013691 48-8M0013692
HP 16.25 32 48-8M0013721 48-8M0013722
IIIA, IV, V, VI, VII SSM, NXT1, M8 16 32 48-8M0013751 48-8M0013752
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 15.75 32 48-8M0013781 48-8M0013782
(152mm) hub length 15.5 32 48-8M0013811 48-8M0013812
15.25 32 48-8M0013841 48-8M0013842
Diameter (Inches) Pitch LH Rotation RH Rotation 15 32 48-8M0013871 48-8M0013872
18 34 48-8M0106505 48-8M0106504 18 33 48-8M0013513 48-8M0013514
16.5 37 48-8M0093361 48-8M0093360 17.75 33 48-8M0013543 48-8M0013544
17 38 48-8M0059069 48-8M0059068 17.5 33 48-8M0013573 48-8M0013574
16.5 38 48-8M0109051 48-8M0109052 17.25 33 48-8M0013603 48-8M0013604
17.5 39 48-8M0101559 48-8M0101560 17 33 48-8M0013633 48-8M0013634
17 39 48-8M0102349 48-8M0102348 16.75 33 48-8M0013663 48-8M0013664
16.75 39 48-8M0107949 48-8M0107948 16.5 33 48-8M0013693 48-8M0013694
17 40 48-8M0059071 48-8M0059070 16.25 33 48-8M0013723 48-8M0013724
17 41 48-8M0029395 48-8M0029396 16 33 48-8M0013753 48-8M0013754
16.50 42 48-8M0104717 48-8M0104716 15.75 33 48-8M0013783 48-8M0013784
15.5 33 48-8M0013813 48-8M0013814
CNC Cleaver, Heat Treated SS 5 Blade, 18 Degree Rake ‑ 1200 15.25 33 48-8M0013843 48-8M0013844
HP 15 33 48-8M0013873 48-8M0013874
IIIA, IV, V, VI, VII SSM, NXT1, M8 18 34 48-8M0013515 48-8M0013516
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 17.75 34 48-8M0013545 48-8M0013546
(152mm) hub length 17.5 34 48-8M0013575 48-8M0013576
17.25 34 48-8M0013605 48-8M0013606
Diameter (Inches) Pitch LH Rotation RH Rotation 17 34 48-8M0013635 48-8M0013636
18 30 48-8M0013507 48-8M0013508 16.75 34 48-8M0013665 48-8M0013666
17.75 30 48-8M0013537 48-8M0013538 16.5 34 48-8M0013695 48-8M0013696
17.5 30 48-8M0013567 48-8M0013568 16.25 34 48-8M0013725 48-8M0013726
17.25 30 48-8M0013597 48-8M0013598 16 34 48-8M0013755 48-8M0013756
17 30 48-8M0013627 48-8M0013628 15.75 34 48-8M0013785 48-8M0013786
16.75 30 48-8M0013657 48-8M0013658 15.5 34 48-8M0013815 48-8M0013816
16.5 30 48-8M0013687 48-8M0013688 15.25 34 48-8M0013845 48-8M0013846
16.25 30 48-8M0013717 48-8M0013718 15 34 48-8M0013875 48-8M0013876
16 30 48-8M0013747 48-8M0013748 18 35 48-8M0013517 48-8M0013518
15.75 30 48-8M0013777 48-8M0013778 17.75 35 48-8M0013547 48-8M0013548
15.5 30 48-8M0013807 48-8M0013808 17.5 35 48-8M0013577 48-8M0013578
15.25 30 48-8M0013837 48-8M0013838 17.25 35 48-8M0013607 48-8M0013608
15 30 48-8M0013867 48-8M0013868 17 35 48-8M0013637 48-8M0013638
18 31 48-8M0013509 48-8M0013510 16.75 35 48-8M0013667 48-8M0013668
17.75 31 48-8M0013539 48-8M0013540 16.5 35 48-8M0013697 48-8M0013698
17.5 31 48-8M0013569 48-8M0013570 16.25 35 48-8M0013727 48-8M0013728
17.25 31 48-8M0013599 48-8M0013600 16 35 48-8M0013757 48-8M0013758
17 31 48-8M0013629 48-8M0013630 15.75 35 48-8M0013787 48-8M0013788
16.75 31 48-8M0013659 48-8M0013660 15.5 35 48-8M0013817 48-8M0013818
16.5 31 48-8M0013689 48-8M0013690 15.25 35 48-8M0013847 48-8M0013848
16.25 31 48-8M0013719 48-8M0013720
