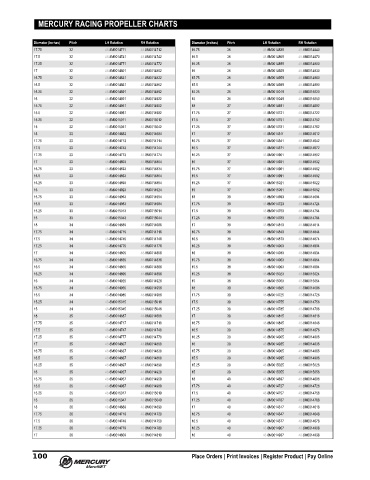

Page 107 - Mercury Propeller Guide (2021) - 8M0174460

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation Diameter (Inches) Pitch LH Rotation RH Rotation
17.75 32 48-8M0014711 48-8M0014712 16.75 36 48-8M0014839 48-8M0014840
17.5 32 48-8M0014741 48-8M0014742 16.5 36 48-8M0014869 48-8M0014870
17.25 32 48-8M0014771 48-8M0014772 16.25 36 48-8M0014899 48-8M0014900
17 32 48-8M0014801 48-8M0014802 16 36 48-8M0014929 48-8M0014930
16.75 32 48-8M0014831 48-8M0014832 15.75 36 48-8M0014959 48-8M0014960
16.5 32 48-8M0014861 48-8M0014862 15.5 36 48-8M0014989 48-8M0014990
16.25 32 48-8M0014891 48-8M0014892 15.25 36 48-8M0015019 48-8M0015020
16 32 48-8M0014921 48-8M0014922 15 36 48-8M0015049 48-8M0015050
15.75 32 48-8M0014951 48-8M0014952 18 37 48-8M0014691 48-8M0014692
15.5 32 48-8M0014981 48-8M0014982 17.75 37 48-8M0014721 48-8M0014722
15.25 32 48-8M0015011 48-8M0015012 17.5 37 48-8M0014751 48-8M0014752
15 32 48-8M0015041 48-8M0015042 17.25 37 48-8M0014781 48-8M0014782
18 33 48-8M0014683 48-8M0014684 17 37 48-8M0014811 48-8M0014812
17.75 33 48-8M0014713 48-8M0014714 16.75 37 48-8M0014841 48-8M0014842
17.5 33 48-8M0014743 48-8M0014744 16.5 37 48-8M0014871 48-8M0014872
17.25 33 48-8M0014773 48-8M0014774 16.25 37 48-8M0014901 48-8M0014902
17 33 48-8M0014803 48-8M0014804 16 37 48-8M0014931 48-8M0014932
16.75 33 48-8M0014833 48-8M0014834 15.75 37 48-8M0014961 48-8M0014962
16.5 33 48-8M0014863 48-8M0014864 15.5 37 48-8M0014991 48-8M0014992
16.25 33 48-8M0014893 48-8M0014894 15.25 37 48-8M0015021 48-8M0015022
16 33 48-8M0014923 48-8M0014924 15 37 48-8M0015051 48-8M0015052
15.75 33 48-8M0014953 48-8M0014954 18 38 48-8M0014693 48-8M0014694
15.5 33 48-8M0014983 48-8M0014984 17.75 38 48-8M0014723 48-8M0014724
15.25 33 48-8M0015013 48-8M0015014 17.5 38 48-8M0014753 48-8M0014754
15 33 48-8M0015043 48-8M0015044 17.25 38 48-8M0014783 48-8M0014784
18 34 48-8M0014685 48-8M0014686 17 38 48-8M0014813 48-8M0014814
17.75 34 48-8M0014715 48-8M0014716 16.75 38 48-8M0014843 48-8M0014844
17.5 34 48-8M0014745 48-8M0014746 16.5 38 48-8M0014873 48-8M0014874
17.25 34 48-8M0014775 48-8M0014776 16.25 38 48-8M0014903 48-8M0014904
17 34 48-8M0014805 48-8M0014806 16 38 48-8M0014933 48-8M0014934
16.75 34 48-8M0014835 48-8M0014836 15.75 38 48-8M0014963 48-8M0014964
16.5 34 48-8M0014865 48-8M0014866 15.5 38 48-8M0014993 48-8M0014994
16.25 34 48-8M0014895 48-8M0014896 15.25 38 48-8M0015023 48-8M0015024
16 34 48-8M0014925 48-8M0014926 15 38 48-8M0015053 48-8M0015054
15.75 34 48-8M0014955 48-8M0014956 18 39 48-8M0014695 48-8M0014696
15.5 34 48-8M0014985 48-8M0014986 17.75 39 48-8M0014725 48-8M0014726
15.25 34 48-8M0015015 48-8M0015016 17.5 39 48-8M0014755 48-8M0014756
15 34 48-8M0015045 48-8M0015046 17.25 39 48-8M0014785 48-8M0014786
18 35 48-8M0014687 48-8M0014688 17 39 48-8M0014815 48-8M0014816
17.75 35 48-8M0014717 48-8M0014718 16.75 39 48-8M0014845 48-8M0014846
17.5 35 48-8M0014747 48-8M0014748 16.5 39 48-8M0014875 48-8M0014876
17.25 35 48-8M0014777 48-8M0014778 16.25 39 48-8M0014905 48-8M0014906
17 35 48-8M0014807 48-8M0014808 16 39 48-8M0014935 48-8M0014936
16.75 35 48-8M0014837 48-8M0014838 15.75 39 48-8M0014965 48-8M0014966
16.5 35 48-8M0014867 48-8M0014868 15.5 39 48-8M0014995 48-8M0014996
16.25 35 48-8M0014897 48-8M0014898 15.25 39 48-8M0015025 48-8M0015026
16 35 48-8M0014927 48-8M0014928 15 39 48-8M0015055 48-8M0015056
15.75 35 48-8M0014957 48-8M0014958 18 40 48-8M0014697 48-8M0014698
15.5 35 48-8M0014987 48-8M0014988 17.75 40 48-8M0014727 48-8M0014728
15.25 35 48-8M0015017 48-8M0015018 17.5 40 48-8M0014757 48-8M0014758
15 35 48-8M0015047 48-8M0015048 17.25 40 48-8M0014787 48-8M0014788
18 36 48-8M0014689 48-8M0014690 17 40 48-8M0014817 48-8M0014818
17.75 36 48-8M0014719 48-8M0014720 16.75 40 48-8M0014847 48-8M0014848
17.5 36 48-8M0014749 48-8M0014750 16.5 40 48-8M0014877 48-8M0014878
17.25 36 48-8M0014779 48-8M0014780 16.25 40 48-8M0014907 48-8M0014908
17 36 48-8M0014809 48-8M0014810 16 40 48-8M0014937 48-8M0014938
