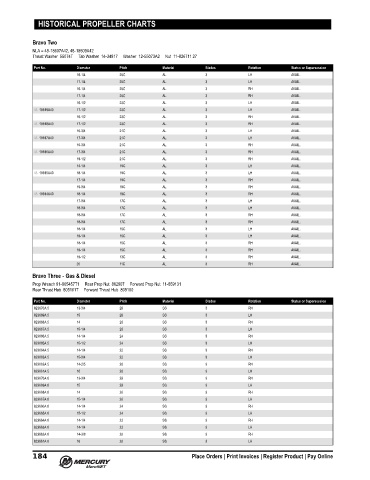

Page 191 - Mercury Propeller Guide (2021) - 8M0174460

HISTORICAL PROPELLER CHARTS

Bravo Two
NLA = 48‑18607A42, 48‑18609A42
Thrust Washer 55074T Tab Washer 14‑34817 Washer 12‑55073A2 Nut 11‑826711 27

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
16-1/4 25C AL 3 LH AVAIL.
17-1/4 25C AL 3 LH AVAIL.
16-1/4 25C AL 3 RH AVAIL.
17-1/4 25C AL 3 RH AVAIL.
16-1/2 23C AL 3 LH AVAIL.
48- 18619A40 17-1/2 23C AL 3 LH AVAIL.
16-1/2 23C AL 3 RH AVAIL.
48- 18618A40 17-1/2 23C AL 3 RH AVAIL.
16-3/4 21C AL 3 LH AVAIL.
48- 18617A40 17-3/4 21C AL 3 LH AVAIL.
16-3/4 21C AL 3 RH AVAIL.
48- 18616A40 17-3/4 21C AL 3 RH AVAIL.
19-1/2 21C AL 3 RH AVAIL.
14-1/4 19C AL 3 LH AVAIL.
48- 18615A40 18-1/4 19C AL 3 LH AVAIL.
17-1/4 19C AL 3 RH AVAIL.
19-3/4 19C AL 3 RH AVAIL.
48- 18614A40 18-1/4 19C AL 3 RH AVAIL.
17-3/4 17C AL 3 LH AVAIL.
18-3/4 17C AL 3 LH AVAIL.
18-3/4 17C AL 3 RH AVAIL.
18-3/4 17C AL 3 RH AVAIL.
18-1/4 15C AL 3 LH AVAIL.
19-1/4 15C AL 3 LH AVAIL.
18-1/4 15C AL 3 RH AVAIL.
19-1/4 15C AL 3 RH AVAIL.
19-1/2 13C AL 3 RH AVAIL.
20 11C AL 3 RH AVAIL.
Bravo Three ‑ Gas & Diesel
Prop Wrench 91‑805457T1 Rear Prop Nut 862907 Forward Prop Nut 11‑859131
Rear Thrust Hub 805101T Forward Thrust Hub 805100

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
823670A 5 13-3/4 28 SS 3 RH
823669A 5 15 28 SS 3 LH
823668A 5 14 26 SS 3 RH
823667A 5 15-1/4 26 SS 3 LH
823666A 5 14-1/4 24 SS 3 RH
823665A 5 15-1/2 24 SS 3 LH
823664A 5 14-1/4 22 SS 3 RH
823663A 5 15-3/4 22 SS 3 LH
823662A 5 14-2/5 20 SS 3 RH
823661A 5 16 20 SS 3 LH
823670A 6 13-3/4 28 SS 3 RH
823669A 6 15 28 SS 3 LH
823668A 6 14 26 SS 3 RH
823667A 6 15-1/4 26 SS 3 LH
823666A 6 14-1/4 24 SS 3 RH
823665A 6 15-1/2 24 SS 3 LH
823664A 6 14-1/4 22 SS 3 RH
823663A 6 14-1/4 22 SS 3 LH
823662A 6 14-3/8 20 SS 3 RH
823661A 6 16 20 SS 3 LH
