Page 193 - Mercury Propeller Guide (2021) - 8M0174460

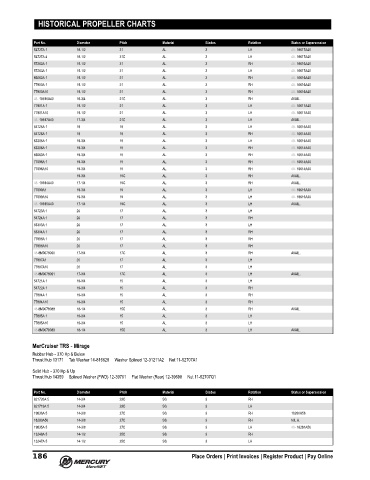

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
54727A 1 18-1/2 21 AL 3 LH 48- 18617A40
54727A 4 18-1/2 21C AL 3 LH 48- 18617A40
57262A 1 19-1/2 21 AL 3 RH 48- 18616A40
57263A 1 19-1/2 21 AL 3 LH 48- 18617A40
69262A 1 19-1/2 21 AL 3 RH 48- 18616A40
77900A 1 19-1/2 21 AL 3 RH 48- 18616A40
77900A10 19-1/2 21 AL 3 RH 48- 18616A40
48- 18616A40 16-3/4 21C AL 3 RH AVAIL.
77901A 1 19-1/2 21 AL 3 LH 48- 18617A40
77901A10 19-1/2 21 AL 3 LH 48- 18617A40
48- 18617A40 17-3/4 21C AL 3 LH AVAIL.
54725A 1 19 19 AL 3 LH 48- 18615A40
54726A 1 19 19 AL 3 RH 48- 18614A40
63305A 1 19-3/4 19 AL 3 LH 48- 18615A40
63306A 1 19-3/4 19 AL 3 RH 48- 18614A40
69260A 1 19-3/4 19 AL 3 RH 48- 18614A40
77898A 1 19-3/4 19 AL 3 RH 48- 18614A40
77898A10 19-3/4 19 AL 3 RH 48- 18614A40
19-3/4 19C AL 3 RH AVAIL.
48- 18614A40 17-1/4 19C AL 3 RH AVAIL.
77899A1 19-3/4 19 AL 3 LH 48- 18615A40
77899A10 19-3/4 19 AL 3 LH 48- 18615A40
48- 18615A40 17-1/4 19C AL 3 LH AVAIL.
54723A 1 20 17 AL 3 LH
54724A 1 20 17 AL 3 RH
63303A 1 20 17 AL 3 LH
63304A 1 20 17 AL 3 RH
77896A 1 20 17 AL 3 RH
77896A10 20 17 AL 3 RH
48-8M0078090 17-3/4 17C AL 3 RH AVAIL.
77897A1 20 17 AL 3 LH
77897A10 20 17 AL 3 LH
48-8M0078091 17-3/4 17C AL 3 LH AVAIL.
54721A 1 19-3/4 15 AL 3 LH
54722A 1 19-3/4 15 AL 3 RH
77894A 1 19-3/4 15 AL 3 RH
77894A10 19-3/4 15 AL 3 RH
48-8M0078088 18-1/4 15C AL 3 RH AVAIL.
77895A 1 19-3/4 15 AL 3 LH
77895A10 19-3/4 15 AL 3 LH
48-8M0078089 18-1/4 15C AL 3 LH AVAIL.

MerCruiser TRS ‑ Mirage
Rubber Hub ‑ 370 Hp & Below
Thrust Hub 13171 Tab Washer 14‑816629 Washer Splined 12‑31211A2 Nut 11‑52707A1
Solid Hub ‑ 370 Hp & Up
Thrust Hub 14359 Splined Washer (FWD) 12‑39701 Flat Washer (Rear) 12‑39698 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
821720A 5 14-3/4 29C SS 3 RH
821719A 5 14-3/4 29C SS 3 LH
19836A 5 14-3/8 27C SS 3 RH 18280A56
18280A56 14-3/8 27C SS 3 RH N.L.A.
19835A 5 14-3/8 27C SS 3 LH 48- 18281A56
13248A 5 14-1/2 25C SS 3 RH
13247A 5 14-1/2 25C SS 3 LH
