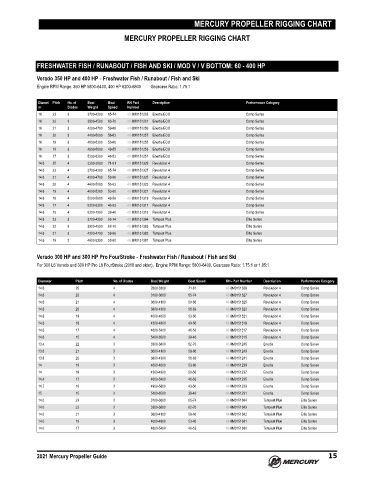

MERCURY PROPELLER RIGGING CHART

MERCURY PROPELLER RIGGING CHART

FRESHWATER FISH / RUNABOUT / FISH AND SKI / MOD V / V BOTTOM: 60 - 400 HP

Verado 350 HP and 400 HP ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 350 HP 5800‑6400, 400 HP 6200‑6800 Gearcase Ratio: 1.75:1

Diamet Pitch No. of Boat Boat RH Part Description Performance Category
er Blades Weight Speed Number
16 23 3 3700-4200 65-74 48-8M0151263 Enertia ECO Comp Series
16 22 3 3900-4500 63-70 48-8M0151261 Enertia ECO Comp Series
16 21 3 4200-4700 59-66 48-8M0151259 Enertia ECO Comp Series
16 20 3 4400-5000 56-63 48-8M0151257 Enertia ECO Comp Series
16 19 3 4600-5300 53-60 48-8M0151255 Enertia ECO Comp Series
16 18 3 4900-5800 49-55 48-8M0151253 Enertia ECO Comp Series
16 17 3 5300-6300 46-53 48-8M0151251 Enertia ECO Comp Series
14.6 25 4 3300-3800 71-81 48-8M0151329 Revolution 4 Comp Series
14.6 23 4 3700-4200 65-74 48-8M0151327 Revolution 4 Comp Series
14.6 21 4 4200-4700 59-66 48-8M0151325 Revolution 4 Comp Series
14.6 20 4 4400-5000 56-63 48-8M0151323 Revolution 4 Comp Series
14.6 19 4 4600-5300 53-60 48-8M0151321 Revolution 4 Comp Series
14.6 18 4 5000-5600 49-56 48-8M0151319 Revolution 4 Comp Series
14.6 17 4 5300-6300 46-53 48-8M0151317 Revolution 4 Comp Series
14.6 15 4 6300-7500 39-46 48-8M0151315 Revolution 4 Comp Series
14.6 23 3 3700-4200 65-74 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 3900-4500 62-70 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 4200-4700 59-66 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 4600-5300 53-60 48-8M0151381 Tempest Plus Elite Series

Verado 300 HP and 300 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
For 300 L6 Verado and 300 HP Pro L6 FourStroke (2018 and older), Engine RPM Range: 5800‑6400, Gearcase Ratio: 1.75:1 or 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 25 4 2800-3300 71-81 48-8M0151329 Revolution 4 Comp Series
14.6 23 4 3100-3600 65-74 48-8M0151327 Revolution 4 Comp Series
14.6 21 4 3600-4100 59-66 48-8M0151325 Revolution 4 Comp Series
14.6 20 4 3800-4300 56-63 48-8M0151323 Revolution 4 Comp Series
14.6 19 4 4000-4600 53-60 48-8M0151321 Revolution 4 Comp Series
14.6 18 4 4300-4800 49-56 48-8M0151319 Revolution 4 Comp Series
14.6 17 4 4600-5400 46-53 48-8M0151317 Revolution 4 Comp Series
14.6 15 4 5400-6500 39-46 48-8M0151315 Revolution 4 Comp Series
13.4 22 3 3300-3800 62-70 48-8M0151245 Enertia Comp Series
13.6 21 3 3600-4100 59-66 48-8M0151243 Enertia Comp Series
13.8 20 3 3800-4300 56-63 48-8M0151241 Enertia Comp Series
14 19 3 4000-4600 53-60 48-8M0151239 Enertia Comp Series
14 18 3 4300-4900 50-56 48-8M0151237 Enertia Comp Series
14.4 17 3 4600-5400 46-53 48-8M0151235 Enertia Comp Series
14.7 16 3 4900-5800 43-50 48-8M0151233 Enertia Comp Series
15 15 3 5400-6500 39-46 48-8M0151231 Enertia Comp Series
14.6 23 3 3100-3600 65-74 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 3300-3800 62-70 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 3600-4100 59-66 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 4000-4600 53-60 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 4600-5400 46-53 48-8M0151380 Tempest Plus Elite Series

2021 Mercury Propeller Guide 15
