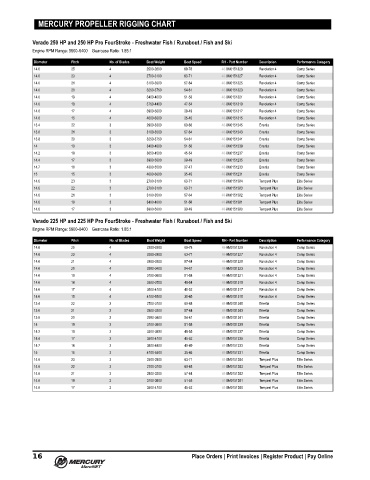

MERCURY PROPELLER RIGGING CHART

Verado 250 HP and 250 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 25 4 2500-2800 69-78 48-8M0151329 Revolution 4 Comp Series
14.6 23 4 2700-3100 63-71 48-8M0151327 Revolution 4 Comp Series
14.6 21 4 3100-3500 57-64 48-8M0151325 Revolution 4 Comp Series
14.6 20 4 3250-3750 54-61 48-8M0151323 Revolution 4 Comp Series
14.6 19 4 3400-4000 51-58 48-8M0151321 Revolution 4 Comp Series
14.6 18 4 3750-4400 47-54 48-8M0151319 Revolution 4 Comp Series
14.6 17 4 3900-5000 39-49 48-8M0151317 Revolution 4 Comp Series
14.6 15 4 4600-6000 35-45 48-8M0151315 Revolution 4 Comp Series
13.4 22 3 2900-3300 60-68 48-8M0151245 Enertia Comp Series
13.6 21 3 3100-3500 57-64 48-8M0151243 Enertia Comp Series
13.8 20 3 3250-3750 54-61 48-8M0151241 Enertia Comp Series
14 19 3 3400-4000 51-58 48-8M0151239 Enertia Comp Series
14.2 18 3 3650-4500 45-54 48-8M0151237 Enertia Comp Series
14.4 17 3 3900-5000 39-49 48-8M0151235 Enertia Comp Series
14.7 16 3 4300-5500 37-47 48-8M0151233 Enertia Comp Series
15 15 3 4600-6000 35-45 48-8M0151231 Enertia Comp Series
14.6 23 3 2700-3100 63-71 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 2700-3100 63-71 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 3100-3500 57-64 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 3400-4000 51-58 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 3900-5000 39-49 48-8M0151380 Tempest Plus Elite Series
Verado 225 HP and 225 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 25 4 2200-2500 69-78 48-8M0151329 Revolution 4 Comp Series
14.6 23 4 2500-2800 63-71 48-8M0151327 Revolution 4 Comp Series
14.6 21 4 2800-3200 57-64 48-8M0151325 Revolution 4 Comp Series
14.6 20 4 2950-3400 54-61 48-8M0151323 Revolution 4 Comp Series
14.6 19 4 3100-3600 51-58 48-8M0151321 Revolution 4 Comp Series
14.6 18 4 3300-3700 48-54 48-8M0151319 Revolution 4 Comp Series
14.6 17 4 3500-4100 45-52 48-8M0151317 Revolution 4 Comp Series
14.6 15 4 4100-5500 35-45 48-8M0151315 Revolution 4 Comp Series
13.4 22 3 2700-3100 60-68 48-8M0151245 Enertia Comp Series
13.6 21 3 2800-3200 57-64 48-8M0151243 Enertia Comp Series
13.8 20 3 2950-3400 54-61 48-8M0151241 Enertia Comp Series
14 19 3 3100-3600 51-58 48-8M0151239 Enertia Comp Series
14.2 18 3 3300-3850 48-55 48-8M0151237 Enertia Comp Series
14.4 17 3 3500-4100 45-52 48-8M0151235 Enertia Comp Series
14.7 16 3 3800-4800 40-49 48-8M0151233 Enertia Comp Series
15 15 3 4100-5500 35-45 48-8M0151231 Enertia Comp Series
14.6 23 3 2500-2800 63-71 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 2700-3100 60-68 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 2800-3200 57-64 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 3100-3600 51-58 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 3500-4100 45-52 48-8M0151380 Tempest Plus Elite Series
