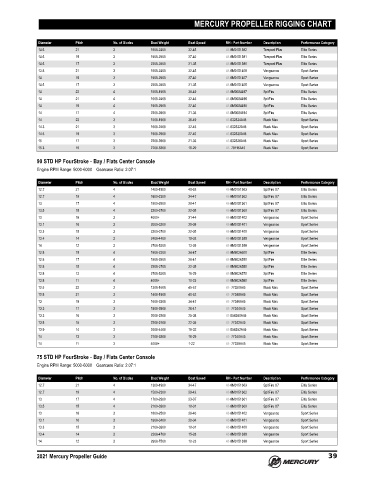

MERCURY PROPELLER RIGGING CHART
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 21 3 1600-2400 32-45 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 1900-2900 27-40 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 2200-3900 21-35 48-8M0151380 Tempest Plus Elite Series
13.8 21 3 1600-2400 32-45 48-8M0151408 Vengeance Sport Series
14 19 3 1900-2900 27-40 48-8M0151407 Vengeance Sport Series
14.5 17 3 2200-3900 21-35 48-8M0151405 Vengeance Sport Series
14 23 4 1500-1900 38-49 48-8M0084497 SpitFire Elite Series
14 21 4 1600-2400 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 1900-2900 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2200-3900 21-35 48-8M0084494 SpitFire Elite Series
14 23 3 1500-1900 38-49 48-832834A45 Black Max Sport Series
14.3 21 3 1600-2400 32-45 48-832832A45 Black Max Sport Series
14.5 19 3 1900-2900 27-40 48-832830A45 Black Max Sport Series
15 17 3 2200-3900 21-35 48-832828A45 Black Max Sport Series
15.3 15 3 2700-5300 16-29 48- 78116A45 Black Max Sport Series
90 STD HP FourStroke ‑ Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1400-1900 40-52 48-8M0151363 SpitFire X7 Elite Series
12.7 19 4 1600-2300 34-47 48-8M0151362 SpitFire X7 Elite Series
13 17 4 1800-2800 28-41 48-8M0151361 SpitFire X7 Elite Series
13.5 15 4 2200-3700 22-35 48-8M0151360 SpitFire X7 Elite Series
13 18 3 4000+ 31-44 48-8M0151402 Vengeance Sport Series
13.1 16 3 2000-3200 25-38 48-8M0151401 Vengeance Sport Series
13.3 15 3 2200-3700 22-35 48-8M0151400 Vengeance Sport Series
13.4 14 3 2400-4400 19-32 48-8M0151399 Vengeance Sport Series
14 12 3 2700-5300 13-26 48-8M0151398 Vengeance Sport Series
12.8 19 4 1600-2300 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 1800-2800 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 2200-3700 22-35 48-8M8026580 SpitFire Elite Series
13.8 13 4 2700-5300 16-29 48-8M8026570 SpitFire Elite Series
13.8 11 4 4000+ 10-23 48-8M8026560 SpitFire Elite Series
12.5 23 3 1300-1600 45-57 48- 77350A45 Black Max Sport Series
12.8 21 3 1400-1900 40-52 48- 77348A45 Black Max Sport Series
13 19 3 1600-2300 34-47 48- 77346A45 Black Max Sport Series
13.3 17 3 1800-2800 28-41 48- 77344A45 Black Max Sport Series
13.3 16 3 2000-3200 25-38 48-854360A45 Black Max Sport Series
13.8 15 3 2200-3700 22-35 48- 77342A45 Black Max Sport Series
13.9 14 3 2400-4400 19-32 48-854352A45 Black Max Sport Series
14 13 3 2700-5300 16-29 48- 77340A45 Black Max Sport Series
14 11 3 4000+ 1-22 48- 77338A45 Black Max Sport Series
75 STD HP FourStroke ‑ Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1300-1900 34-47 48-8M0151363 SpitFire X7 Elite Series
12.7 19 4 1500-2300 29-42 48-8M0151362 SpitFire X7 Elite Series
13 17 4 1700-2900 23-37 48-8M0151361 SpitFire X7 Elite Series
13.5 15 4 2100-3900 18-31 48-8M0151360 SpitFire X7 Elite Series
13 18 3 1600-2500 26-40 48-8M0151402 Vengeance Sport Series
13.1 16 3 1900-3400 20-34 48-8M0151401 Vengeance Sport Series
13.3 15 3 2100-3900 18-31 48-8M0151400 Vengeance Sport Series
13.4 14 3 2300-4700 15-28 48-8M0151399 Vengeance Sport Series
14 12 3 2900-7500 10-23 48-8M0151398 Vengeance Sport Series
2021 Mercury Propeller Guide 39
