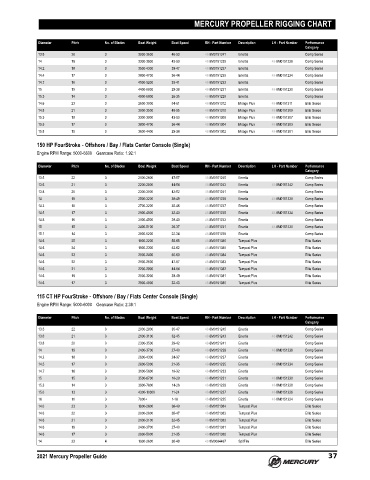

MERCURY PROPELLER RIGGING CHART
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.8 20 3 3000-3600 46-53 48-8M0151241 Enertia Comp Series
14 19 3 3300-3900 43-50 48-8M0151239 Enertia 48-8M0151238 Comp Series
14.2 18 3 3500-4300 39-47 48-8M0151237 Enertia Comp Series
14.4 17 3 3800-4700 36-44 48-8M0151235 Enertia 48-8M0151234 Comp Series
14.7 16 3 4100-5200 33-41 48-8M0151233 Enertia Comp Series
15 15 3 4400-6000 29-38 48-8M0151231 Enertia 48-8M0151230 Comp Series
15.3 14 3 4900-6800 26-35 48-8M0151229 Enertia Comp Series
14.6 23 3 2600-3000 54-61 48-8M0151312 Mirage Plus 48-8M0151311 Elite Series
14.8 21 3 3000-3500 48-55 48-8M0151310 Mirage Plus 48-8M0151309 Elite Series
15.3 19 3 3300-3900 43-50 48-8M0151308 Mirage Plus 48-8M0151307 Elite Series
15.5 17 3 3800-4700 36-44 48-8M0151304 Mirage Plus 48-8M0151303 Elite Series
15.8 15 3 3600-4400 29-38 48-8M0151302 Mirage Plus 48-8M0151301 Elite Series
150 HP FourStroke ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.5 22 3 2100-2600 47-57 48-8M0151245 Enertia Comp Series
13.6 21 3 2200-2800 44-54 48-8M0151243 Enertia 48-8M0151242 Comp Series
13.8 20 3 2300-3000 42-52 48-8M0151241 Enertia Comp Series
14 19 3 2500-3200 39-49 48-8M0151239 Enertia 48-8M0151238 Comp Series
14.3 18 3 2700-3200 35-46 48-8M0151237 Enertia Comp Series
14.5 17 3 2900-4000 32-43 48-8M0151235 Enertia 48-8M0151234 Comp Series
14.8 16 3 3100-4500 29-40 48-8M0151233 Enertia Comp Series
15 15 3 3400-5100 26-37 48-8M0151231 Enertia 48-8M0151230 Comp Series
15.1 14 3 3800-6200 22-34 48-8M0151229 Enertia Comp Series
14.6 25 3 1800-2200 55-65 48-8M0151386 Tempest Plus Elite Series
14.6 24 3 1900-2300 53-62 48-8M0151385 Tempest Plus Elite Series
14.6 23 3 2000-2400 50-60 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 2100-2600 47-57 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 2200-2800 44-54 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 2500-3200 39-49 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 2900-4000 32-43 48-8M0151380 Tempest Plus Elite Series
115 CT HP FourStroke ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.5 22 3 2000-2800 35-47 48-8M0151245 Enertia Comp Series
13.6 21 3 2100-3100 32-45 48-8M0151243 Enertia 48-8M0151242 Comp Series
13.8 20 3 2300-3500 29-42 48-8M0151241 Enertia Comp Series
14 19 3 2400-3700 27-40 48-8M0151239 Enertia 48-8M0151238 Comp Series
14.2 18 3 2600-4300 24-37 48-8M0151237 Enertia Comp Series
14.5 17 3 2800-5000 21-35 48-8M0151235 Enertia 48-8M0151234 Comp Series
14.7 16 3 3100-5600 19-32 48-8M0151233 Enertia Comp Series
15 15 3 3500-6700 16-29 48-8M0151231 Enertia 48-8M0151230 Comp Series
15.3 14 3 3900-7800 14-26 48-8M0151229 Enertia 48-8M0151228 Comp Series
15.6 13 3 4300-10300 11-24 48-8M0151227 Enertia 48-8M0151226 Comp Series
16 11 3 7000+ 1-18 48-8M0151225 Enertia 48-8M0151224 Comp Series
14.6 23 3 1900-2600 38-49 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 2000-2800 35-47 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 2100-3100 32-45 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 2400-3700 27-40 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 2800-5000 21-35 48-8M0151380 Tempest Plus Elite Series
14 23 4 1900-2600 38-49 48-8M0084497 SpitFire Elite Series
2021 Mercury Propeller Guide 37
