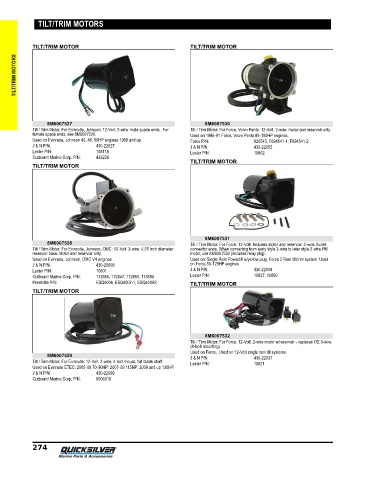

Page 279 - QUICKSILVER MARINE PARTS GUIDE (2019)

TILT/TRIM MOTORS

TILT/TRIM MOTOR TILT/TRIM MOTOR
TILT/TRIM MOTORS

8M6007527 8M6007530
Tilt / Trim Motor: For Evinrude, Johnson: 12‑Volt. 2‑wire: male spade ends. For Tilt / Trim Motor: For Force, Volvo Penta: 12‑Volt. 2‑wire: motor and reservoir only.
female spade ends, see 8M6007526. Used on 1986‑91 Force, Volvo Penta 85‑150HP engines.
Used on Evinrude, Johnson 40, 48, 50HP engines 1989 and up. Force P/N: 820545, F694541-1, F694541-2
J & N P/N: 430-22027 J & N P/N: 430-22053
Lester P/N: 10811A Lester P/N: 10802
Outboard Marine Corp. P/N: 433226
TILT/TRIM MOTOR
TILT/TRIM MOTOR

8M6007531
8M6007528 Tilt / Trim Motor: For Force: 12‑Volt. Includes motor and reservoir. 2‑wire, bullet
Tilt / Trim Motor: For Evinrude, Johnson, OMC: 12‑Volt. 3‑wire: 4.25 Inch diameter connector ends. When converting from early style 3‑wire to later style 2‑wire PM
reservoir base. Motor and reservoir only. motor, use 8M6007532 (includes relay pkg).
Used on Evinrude, Johnson, OMC V4 engines. Used on: Single Ram Powertilt w/yellow plug: Force 2 Ram tilt/trim system. Used
J & N P/N: 430-20008 on Force 50‑125HP engines
Lester P/N: 10801 J & N P/N: 430-22008
Outboard Marine Corp. P/N: 172655, 172847, 172850, 173596 Lester P/N: 10827, 10850
Prestolite P/N: ESQ4006, ESQ4007-1, ESQ4009S TILT/TRIM MOTOR
TILT/TRIM MOTOR

8M6007532
Tilt / Trim Motor: For Force: 12‑Volt. 2‑wire motor w/reservoir ‑ replaces OE 3‑wire
(4‑bolt mounting).
Used on Force. Used on 12‑Volt single ram tilt systems.
8M6007529 J & N P/N: 430-22037
Tilt / Trim Motor: For Evinrude: 12‑Volt. 2‑wire, 4‑bolt mount, flat blade shaft. Lester P/N: 10821
Used on Evinrude ETEC: 2005‑09 70‑90HP: 2007‑09 115HP: 2009 and up 130HP.
J & N P/N: 430-22099
Outboard Marine Corp. P/N: 5006319

274
