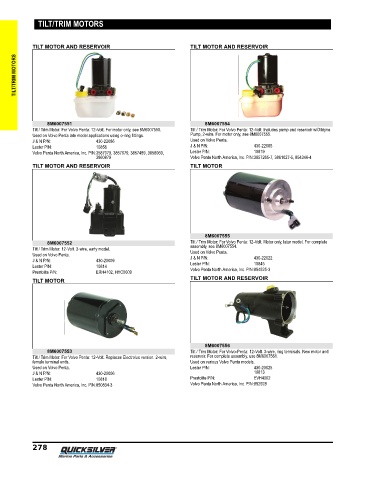

Page 283 - QUICKSILVER MARINE PARTS GUIDE (2019)

TILT/TRIM MOTORS

TILT MOTOR AND RESERVOIR TILT MOTOR AND RESERVOIR
TILT/TRIM MOTORS

8M6007551 8M6007554
Tilt / Trim Motor: For Volvo Penta: 12‑Volt. For motor only, see 8M6007550. Tilt / Trim Motor: For Volvo Penta: 12‑Volt. Includes pump and reservoir w/Oildyne
Used on Volvo Penta late model applications using o‑ring fittings. Pump, 2‑wire. For motor only, see 8M6007555.
J & N P/N: 430-22086 Used on Volvo Penta.
Lester P/N: 10856 J & N P/N: 430-22085
Volvo Penta North America, Inc. P/N:3587079, 3857079, 3857489, 3858069, Lester P/N: 10819
3860879 Volvo Penta North America, Inc. P/N:3857265-7, 3861027-5, 854346-4
TILT MOTOR AND RESERVOIR TILT MOTOR

8M6007555
8M6007552 Tilt / Trim Motor: For Volvo Penta: 12‑Volt. Motor only, later model. For complete
Tilt / Trim Motor: 12‑Volt. 3‑wire, early model. assembly, see 8M6007554.
Used on Volvo Penta.
Used on Volvo Penta.
J & N P/N: 430-20009 J & N P/N: 430-22022
Lester P/N: 10814 Lester P/N: 10845
Volvo Penta North America, Inc. P/N:854525-3
Prestolite P/N: ERH4102, HYC5009
TILT MOTOR TILT MOTOR AND RESERVOIR

8M6007556
8M6007553 Tilt / Trim Motor: For Volvo‑Penta: 12‑Volt. 3‑wire, ring terminals. New motor and
Tilt / Trim Motor: For Volvo Penta: 12‑Volt. Replaces Electrolux version. 2‑wire, reservoir. For complete assembly, use 8M6007561.
female terminal ends. Used on various Volvo Penta models.
Used on Volvo Penta. Lester P/N: 430-20025
J & N P/N: 430-20006 10813
Lester P/N: 10818 Prestolite P/N: EVH4002
Volvo Penta North America, Inc. P/N:850834-3 Volvo Penta North America, Inc. P/N:852928

278
