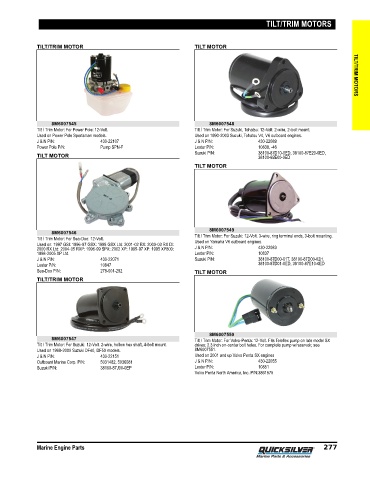

Page 282 - QUICKSILVER MARINE PARTS GUIDE (2019)

TILT/TRIM MOTORS

TILT/TRIM MOTOR TILT MOTOR TILT/TRIM MOTORS

8M6007545 8M6007548
Tilt / Trim Motor: For Power Pole: 12‑Volt. Tilt / Trim Motor: For Suzuki, Tohatsu: 12‑Volt. 2‑wire, 2‑bolt mount.
Used on Power Pole Sportsman models. Used on 1990‑2003 Suzuki, Tohatsu V4, V6 outboard engines.
J & N P/N: 430-22107 J & N P/N: 430-22089
Power Pole P/N: Pump SPN-F Lester P/N: 10838, -46
Suzuki P/N: 38100-87D10-0ED, 38100-87E20-0ED,
TILT MOTOR 38100-92E00-0ED
TILT MOTOR

8M6007549
8M6007546
Tilt / Trim Motor: For Sea‑Doo: 12‑Volt. Tilt / Trim Motor: For Suzuki: 12‑Volt. 3‑wire, ring terminal ends, 3‑bolt mounting.
Used on Yamaha V6 outboard engines.
Used on: 1997 GSI: 1996‑97 GSX: 1998 GSX Ltd: 2001‑02 RX: 2000‑03 RX DI:
2000 RX Ltd: 2004‑05 RXP: 1996‑99 SPX: 2002 XP: 1995‑97 XP: 1995 XP800: J & N P/N: 430-22083
1998‑2005 XP Ltd. Lester P/N: 10837
J & N P/N: 430-22071 Suzuki P/N: 38100-87D00-01T, 38100-87D00-02H,
Lester P/N: 10847 38100-87D01-0ED, 38100-87E10-0ED
Sea-Doo P/N: 278-001-292 TILT MOTOR
TILT/TRIM MOTOR

8M6007550
8M6007547 Tilt / Trim Motor: For Volvo‑Penta: 12‑Volt. Fits Teleflex pump on late model SX
Tilt / Trim Motor: For Suzuki: 12‑Volt. 2‑wire, hollow hex shaft, 4‑bolt mount. drives: 2.3 inch on‑center bolt holes. For complete pump w/reservoir, see
Used on 1999‑2000 Suzuki DF40, DF50 models. 8M6007551.
J & N P/N: 430-22151 Used on 2001 and up Volvo Penta SX engines
Outboard Marine Corp. P/N: 5031482, 5036081 J & N P/N: 430-22055
Suzuki P/N: 38100-87J00-0EP Lester P/N: 10851
Volvo Penta North America, Inc. P/N:3861575
