Critical Procedures

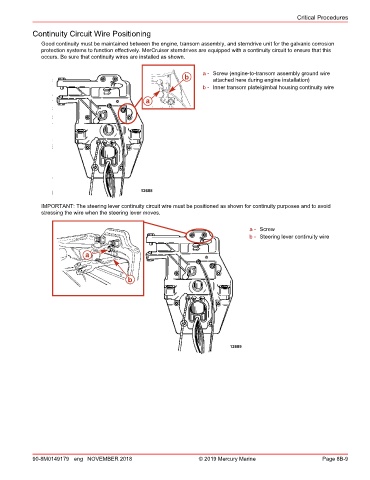

Continuity Circuit Wire Positioning
Good continuity must be maintained between the engine, transom assembly, and sterndrive unit for the galvanic corrosion
protection systems to function effectively. MerCruiser sterndrives are equipped with a continuity circuit to ensure that this
occurs. Be sure that continuity wires are installed as shown.
a - Screw (engine‑to‑transom assembly ground wire
b attached here during engine installation)
b - Inner transom plate/gimbal housing continuity wire
a
12688
IMPORTANT: The steering lever continuity circuit wire must be positioned as shown for continuity purposes and to avoid
stressing the wire when the steering lever moves.
a - Screw
b - Steering lever continuity wire
a
b
12689
90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 8B-9
