Page 153 - Installation Manual - GenII DTS
P. 153

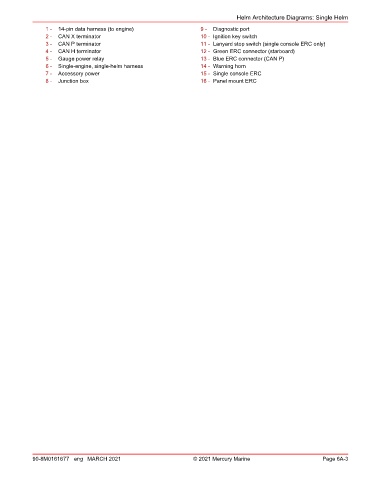

Helm Architecture Diagrams: Single Helm
1 - 14‑pin data harness (to engine) 9 - Diagnostic port
2 - CAN X terminator 10 - Ignition key switch
3 - CAN P terminator 11 - Lanyard stop switch (single console ERC only)
4 - CAN H terminator 12 - Green ERC connector (starboard)
5 - Gauge power relay 13 - Blue ERC connector (CAN P)
6 - Single‑engine, single‑helm harness 14 - Warning horn
7 - Accessory power 15 - Single console ERC
8 - Junction box 16 - Panel mount ERC
90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6A-3
