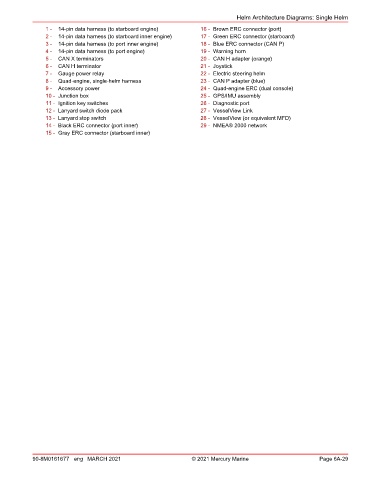

Helm Architecture Diagrams: Single Helm
1 - 14‑pin data harness (to starboard engine) 16 - Brown ERC connector (port)
2 - 14‑pin data harness (to starboard inner engine) 17 - Green ERC connector (starboard)
3 - 14‑pin data harness (to port inner engine) 18 - Blue ERC connector (CAN P)
4 - 14‑pin data harness (to port engine) 19 - Warning horn
5 - CAN X terminators 20 - CAN H adapter (orange)
6 - CAN H terminator 21 - Joystick
7 - Gauge power relay 22 - Electric steering helm
8 - Quad‑engine, single‑helm harness 23 - CAN P adapter (blue)
9 - Accessory power 24 - Quad‑engine ERC (dual console)
10 - Junction box 25 - GPS/IMU assembly
11 - Ignition key switches 26 - Diagnostic port
12 - Lanyard switch diode pack 27 - VesselView Link
13 - Lanyard stop switch 28 - VesselView (or equivalent MFD)
14 - Black ERC connector (port inner) 29 - NMEA® 2000 network
15 - Gray ERC connector (starboard inner)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6A-29
