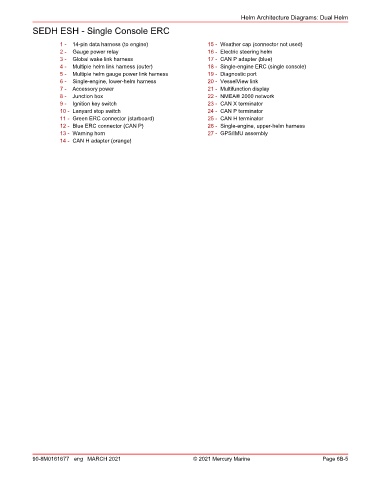

Helm Architecture Diagrams: Dual Helm
SEDH ESH - Single Console ERC
1 - 14‑pin data harness (to engine) 15 - Weather cap (connector not used)
2 - Gauge power relay 16 - Electric steering helm
3 - Global wake link harness 17 - CAN P adapter (blue)
4 - Multiple helm link harness (outer) 18 - Single‑engine ERC (single console)
5 - Multiple helm gauge power link harness 19 - Diagnostic port
6 - Single‑engine, lower‑helm harness 20 - VesselView link
7 - Accessory power 21 - Multifunction display
8 - Junction box 22 - NMEA® 2000 network
9 - Ignition key switch 23 - CAN X terminator
10 - Lanyard stop switch 24 - CAN P terminator
11 - Green ERC connector (starboard) 25 - CAN H terminator
12 - Blue ERC connector (CAN P) 26 - Single‑engine, upper‑helm harness
13 - Warning horn 27 - GPS/IMU assembly
14 - CAN H adapter (orange)
90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6B-5
