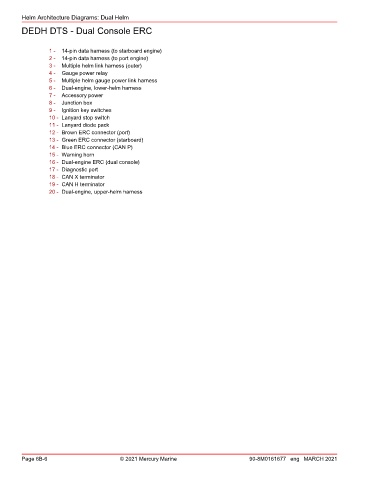

Helm Architecture Diagrams: Dual Helm
DEDH DTS - Dual Console ERC
1 - 14‑pin data harness (to starboard engine)
2 - 14‑pin data harness (to port engine)
3 - Multiple helm link harness (outer)
4 - Gauge power relay
5 - Multiple helm gauge power link harness
6 - Dual‑engine, lower‑helm harness
7 - Accessory power
8 - Junction box
9 - Ignition key switches
10 - Lanyard stop switch
11 - Lanyard diode pack
12 - Brown ERC connector (port)
13 - Green ERC connector (starboard)
14 - Blue ERC connector (CAN P)
15 - Warning horn
16 - Dual‑engine ERC (dual console)
17 - Diagnostic port
18 - CAN X terminator
19 - CAN H terminator
20 - Dual‑engine, upper‑helm harness
Page 6B-6 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
