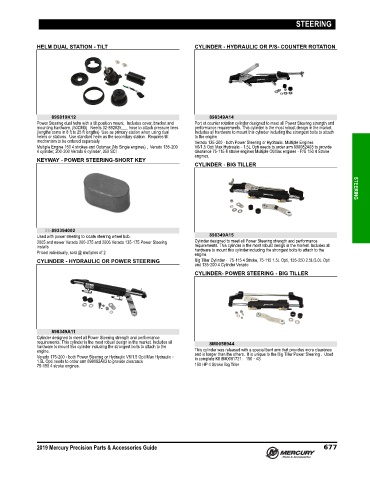

Page 687 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

STEERING

HELM DUAL STATION - TILT CYLINDER - HYDRAULIC OR P/S- COUNTER ROTATION

895819K12 898349A14
Power Steering dual helm with a tilt position mount. Includes cover, bracket and Port ot counter rotation cylinder designed to meet all Power Steering strength and
mounting hardware. (50CM3) Needs 32‑892825___ hose to attach pressure lines performance requirements. This cylinder is the most robust design in the market.
(lengths come in 8 ft to 25 ft lengths) Use as primary station when using dual Includes all hardware to mount this cylinder including the strongest bolts to attach
helms or stations. Use standard helm as the secondary station. Requires tilt to the engine
mechanism to be ordered separately. Verado 135‑200 ‑ both Power Steering or Hydraulic. Multiple Engines
Multiple Engine 150 4 strokes and Optimax (No Single engines) , Verado 135‑200 V6/1.5 Opti Max Hydraulic ‑ 1.5L Opti needs to order arm 898082A03 to provide
4 cylinder, 200‑300 Verado 6 cylinder, 350 SCI clearance 75‑115 4 stroke engines Multiple OtiMax engines ‑ P/S 150 4 Stroke
engines.
KEYWAY - POWER STEERING-SHORT KEY
CYLINDER - BIG TILLER STEERING

28-893394002
Used with power steering to locate steering wheel hub. 898349A15
2005 and newer Verado 200‑275 and 2006 Verado 135‑175 Power Steering Cylinder designed to meet all Power Steering strength and performance
installs requirements. This cylinder is the most robust design in the market. Includes all
Priced individually, sold @ multiples of 2 hardware to mount this cylinder including the strongest bolts to attach to the
engine.
CYLINDER - HYDRAULIC OR POWER STEERING Big Tiller Cylinder ‑ 75‑115 4 Stroke, 75‑115 1.5L Opti, 135‑250 2.5L/3.0L Opti
and 135‑200 4 Cylinder Verado
CYLINDER- POWER STEERING - BIG TILLER

898349A11
Cylinder designed to meet all Power Steering strength and performance
requirements. This cylinder is the most robust design in the market. Includes all 8M0058944
hardware to mount this cylinder including the strongest bolts to attach to the
engine. This cylinder was released with a special bent arm that provides more clearance
Verado 175‑200 ‑ both Power Steering or Hydraulic V6/1.5 Opti Max Hydraulic ‑ and is longer than the others. It is unique to the Big Tiller Power Steering . Used
in complete Kit 8M0061721. 150 ‑ 4S
1.5L Opti needs to order arm 898082A03 to provide clearance
75‑150 4 stroke engines. 150 HP 4 Stroke Big Tiller

2019 Mercury Precision Parts & Accessories Guide 677
