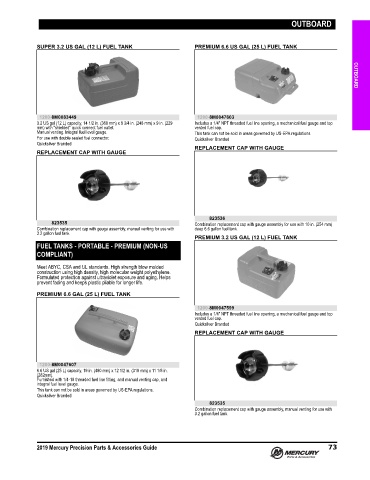

Page 83 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

OUTBOARD

SUPER 3.2 US GAL (12 L) FUEL TANK PREMIUM 6.6 US GAL (25 L) FUEL TANK OUTBOARD

1200-8M0083449 1200-8M0047603
3.2 US gal (12 L) capacity, 14 1/2 in. (368 mm) x 9 3/4 in. (248 mm) x 9 in. (229 Includes a 1/4" NPT threaded fuel line opening, a mechanical fuel gauge and top
mm) with "shielded" quick connect fuel outlet. vented fuel cap.
Manual venting. Integral fuel level gauge. This tank can not be sold in areas governed by US‑EPA regulations.
For use with double sealed fuel connector. Quicksilver Branded
Quicksilver Branded
REPLACEMENT CAP WITH GAUGE
REPLACEMENT CAP WITH GAUGE

823536
823535 Combination replacement cap with gauge assembly for use with 10 in. (254 mm)
Combination replacement cap with gauge assembly, manual venting for use with deep 6.6 gallon fuel tank.
3.2 gallon fuel tank.
PREMIUM 3.2 US GAL (12 L) FUEL TANK
FUEL TANKS - PORTABLE - PREMIUM (NON-US
COMPLIANT)
Meet ABYC, CSA and UL standards. High strength blow molded
construction using high density, high molecular weight polyethylene.
Formulated protection against ultraviolet exposure and aging. Helps
prevent fading and keeps plastic pliable for longer life.
PREMIUM 6.6 GAL (25 L) FUEL TANK

1200-8M0047599
Includes a 1/4" NPT threaded fuel line opening, a mechanical fuel gauge and top
vented fuel cap.
Quicksilver Branded
REPLACEMENT CAP WITH GAUGE

1200-8M0047607
6.6 US gal (25 L) capacity, 19 in. (480 mm) x 12 1/2 in. (318 mm) x 11 1/8 in.
(282mm).
Furnished with 1/4‑18 threaded fuel line fitting, and manual venting cap, and
integral fuel level gauge.
This tank can not be sold in areas governed by US‑EPA regulations.
Quicksilver Branded
823535
Combination replacement cap with gauge assembly, manual venting for use with
3.2 gallon fuel tank.

2019 Mercury Precision Parts & Accessories Guide 73
