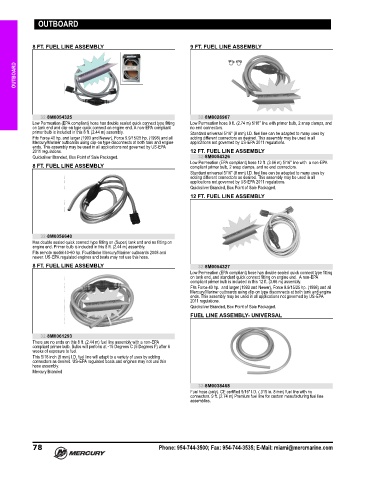

Page 88 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

OUTBOARD

8 FT. FUEL LINE ASSEMBLY 9 FT. FUEL LINE ASSEMBLY

OUTBOARD

32-8M0054325 32-8M8026967
Low Permeation (EPA compliant) hose has double sealed quick connect type fitting Low Permeation hose 9 ft. (2.74 m) 5/16" line with primer bulb, 2 snap clamps, and
on tank end and clip‑on type quick connect on engine end. A non‑EPA compliant no end connectors.
primer bulb is included in this 8 ft. (2.44 m) assembly. Standard universal 5/16" (8 mm) I.D. fuel line can be adapted to many uses by
Fits Force 40 hp. and larger (1993 and Newer), Force 9.9/15/25 hp. (1998) and all adding different connectors as desired. This assembly may be used in all
Mercury/Mariner outboards using clip‑on type disconnects at both tank and engine applications not governed by US‑EPA 2011 regulations.
ends. This assembly may be used in all applications not governed by US‑EPA
2011 regulations. 12 FT. FUEL LINE ASSEMBLY
Quicksilver Branded, Box Point of Sale Packaged. 32-8M0054326
Low Permeation (EPA compliant) hose 12 ft. (3.66 m) 5/16" line with a non‑EPA
8 FT. FUEL LINE ASSEMBLY compliant primer bulb, 2 snap clamps, and no end connectors.
Standard universal 5/16" (8 mm) I.D. fuel line can be adapted to many uses by
adding different connectors as desired. This assembly may be used in all
applications not governed by US‑EPA 2011 regulations.
Quicksilver Branded, Box Point of Sale Packaged.
12 FT. FUEL LINE ASSEMBLY

32-8M0056640
Has double sealed quick connect type fitting on (Super) tank end and no fitting on
engine end. Primer bulb is included in this 8 ft. (2.44 m) assembly.
Fits remote model 40‑60 hp. FourStroke Mercury/Mariner outboards 2008 and
newer. US‑EPA regulated engines and boats may not use this hose.
8 FT. FUEL LINE ASSEMBLY 32-8M0054327
Low Permeation (EPA compliant) hose has double sealed quick connect type fitting
on tank end, and standard quick connect fitting on engine end. A non‑EPA
compliant primer bulb is included in this 12 ft. (3.66 m) assembly.
Fits Force 40 hp. and larger (1993 and Newer), Force 9.9/15/25 hp. (1998) and all
Mercury/Mariner outboards using clip‑on type disconnects at both tank and engine
ends. This assembly may be used in all applications not governed by US‑EPA
2011 regulations.
Quicksilver Branded, Box Point of Sale Packaged.
FUEL LINE ASSEMBLY- UNIVERSAL

32-8M0061293
There are no ends on this 8 ft. (2.44 m) fuel line assembly with a non‑EPA
compliant primer bulb. Bulbs will perform at ‑15 Degrees C (5 Degrees F) after 6
weeks of exposure to fuel.
This 5/16 inch (8 mm) I.D. fuel line will adapt to a variety of uses by adding
connectors as desired. US‑EPA regulated boats and engines may not use this
hose assembly.
Mercury Branded

32-8M0038468
Fuel hose (only). CE certified 5/16" I.D. (.315 in. 8 mm) fuel line with no
connectors. 9 ft. (2.74 m) Premium fuel line for custom manufacturing fuel line
assemblies.

78 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
