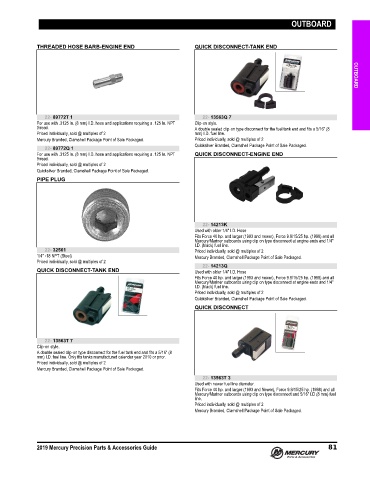

Page 91 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

OUTBOARD

THREADED HOSE BARB-ENGINE END QUICK DISCONNECT-TANK END OUTBOARD

22- 89772T 1 22- 13563Q 7
For use with .3125 In. (8 mm) I.D. hose and applications requiring a .125 In. NPT Clip‑on style.
thread. A double sealed clip‑on type disconnect for the fuel tank end and fits a 5/16" (8
Priced individually, sold @ multiples of 2 mm) I.D. fuel line.
Mercury Branded, Clamshell Package Point of Sale Packaged. Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
22- 89772Q 1
For use with .3125 In. (8 mm) I.D. hose and applications requiring a .125 In. NPT QUICK DISCONNECT-ENGINE END
thread.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
PIPE PLUG

22- 14213K
Used with older 1/4" I.D. Hose
Fits Force 40 hp. and larger (1993 and newer), Force 9.9/15/25 hp. (1998) and all
Mercury/Mariner outboards using clip on type disconnect at engine ends and 1/4"
I.D. (black) fuel line.
22- 32561 Priced individually, sold @ multiples of 2
1/4" ‑18 NPT (Steel) Mercury Branded, Clamshell Package Point of Sale Packaged.
Priced individually, sold @ multiples of 2
22- 14213Q
QUICK DISCONNECT-TANK END Used with older 1/4" I.D. Hose
Fits Force 40 hp. and larger (1993 and newer), Force 9.9/15/25 hp. (1998) and all
Mercury/Mariner outboards using clip on type disconnect at engine ends and 1/4"
I.D. (black) fuel line.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
QUICK DISCONNECT

22- 13563T 7
Clip‑on style.
A double sealed clip‑on type disconnect for the fuel tank end and fits a 5/16" (8
mm) I.D. fuel line. Only fits tanks manufactured calendar year 2010 or prior.
Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.
22- 13563T 3
Used with newer fuel line diameter.
Fits Force 40 hp. and larger (1993 and Newer), Force 9.9/15/25 hp. (1998) and all
Mercury/Mariner outboards using clip on type disconnect and 5/16" I.D (8 mm) fuel
line.
Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.

2019 Mercury Precision Parts & Accessories Guide 81
