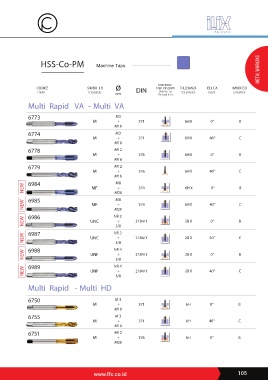

Page 61 - LFC Catalogue metalworking

metalworking
HSS-Co-PM Machine Taps

FORI CIECHI/
CODICE SIMBO LO ø DIN FORI PASSANTI TOLLERANZA ELI CA IMBOCCO
Blind ho le/
ITEM S YMBOL mm Through ho le TOLERANCE HELIX CHAMFER
Multi Rapid VA - Multi VA

6773 M3
M ÷ 371 - 6HX 0° B
M10
6774 M3
M ÷ 371 - 6HX 40° C
M10
6778 M12
M ÷ 376 - 6HX 0° B
M16
6779 M12
M ÷ 376 - 6HX 40° C
M16
M8
NEW 6984 MF M20 374 6HX 0° B
÷

M8
NEW 6985 MF M20 374 - 6HX 40° C
÷

NEW 6986 UNC NR 2 2184/1 - 2B X 0° B
÷
3/8
NEW 6987 UNC NR 2 2184/1 - 2B X 40° C
÷
3/8

NEW 6988 UNF NR 4 2184/1 - 2B X 0° B
÷
3/8

NEW 6989 UNF NR 4 2184/1 - 2B X 40° C
÷
3/8
Multi Rapid - Multi HD

6750 M 3
M ÷ 371 - 6H 0° B
M10
6755 M 3
M ÷ 371 - 6H 40° C
M10
6751 M12
M ÷ 376 - 6H 0° B
M20

www.lfc.co.id 105
